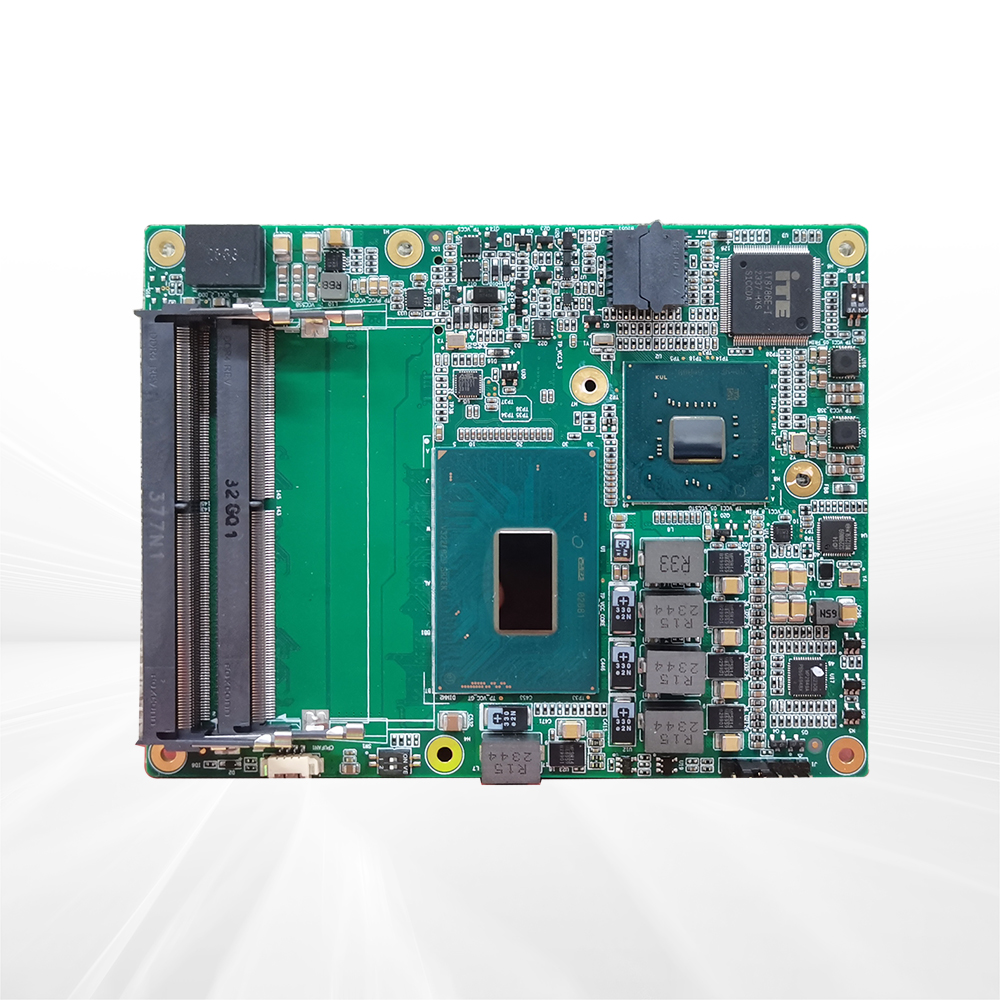

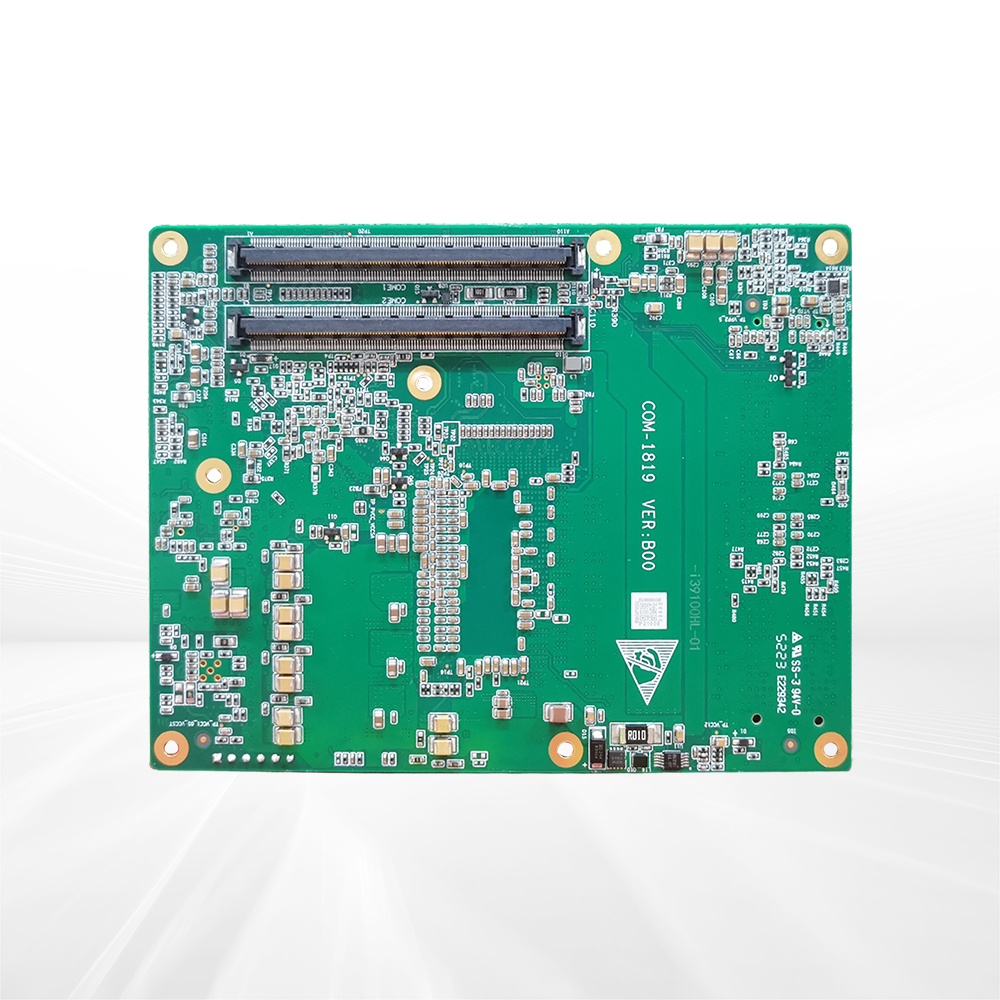

COM-1819 COM Express Type 6 Module

COM Express Basic Type 6 module with 9th Gen Intel Core i7/i3, dual-channel DDR4 and wide-voltage operation for harsh environments.

Processor

Intel® Core™ i7- 9850HE/i7-9850HL/i3-9100H

Memory

2 × DDR4 SO-DIMM, 32 GB per slot, 2133/240

Ethernet

1 × 10/100/1000 Mbps Ethernet

Power

Single 12 V or 5VSB + 12 V dual input; S0/

Operating Temp

i79850HL-01 / i39100HL-01: 0 to +60 °C; i7

Dimensions

125 × 95 mm

The COM-1819 is a COM Express Basic Type 6 computer-on-module built around 9th Gen Intel Core i7-9850HE/HL and i3-9100HL processors with the QM370 chipset. It provides dual-channel DDR4 SO-DIMM memory up to 64 GB, three independent display channels, Gigabit Ethernet, eight USB ports and a full PCIe expansion set, with a -40 to +85 °C industrial option and wide 8.5–16 V power input.

✓Built for harsh environments
✓Wide-voltage operation
✓Rich expansion bus
✓Triple independent display
✓Rich I/O connectivity
✓Dual-channel DDR4 memory
✓9th Gen high-performance processors

Request a Quote Ask a Question

Full Specifications

Overview

Form Factor

COM Express® basic, Type 6

Processor

Intel® Core™ i7- 9850HE/i7-9850HL/i3-9100HL

Chipset

QM370

System Memory

2 × DDR4 SO-DIMM, 32 GB per slot, 2133/2400/2666 MHz, up to 64 GB (non-ECC)

I/O & Expansion

Display

3 DDI channels (3 × DP++ std; VGA/DVI configurable), 1 × eDP

USB

4 × USB 2.0 / 4 × USB 3.1

Ethernet

1 × 10/100/1000 Mbps Ethernet

Audio

HDA audio

Other Interfaces

2 COM, 8 × GPIO (4 in / 4 out), I2C, LPC, SMBus

Expansion

4 × PCIe x1, 1 × PCIe x4, 1 × PCIe x16 (splittable to 2 × x8 or 1 × x8 + 2 × x4)

Storage

Storage Configuration

4*SATA3.0

Power & Environment

Power Input

Single 12 V or 5VSB + 12 V dual input; S0/S1/S5; AT/ATX modes; wide 8.5–16 V input

Operating Temperature

i79850HL-01 / i39100HL-01: 0 to +60 °C; i79850HL-02 / i79850HE-01: -40 to +85 °C

Storage Temperature

-40 to +85 °C

Physical

Dimensions

125 × 95 mm

Software & Management

OS Support

Windows 10, Linux (Ubuntu)

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
