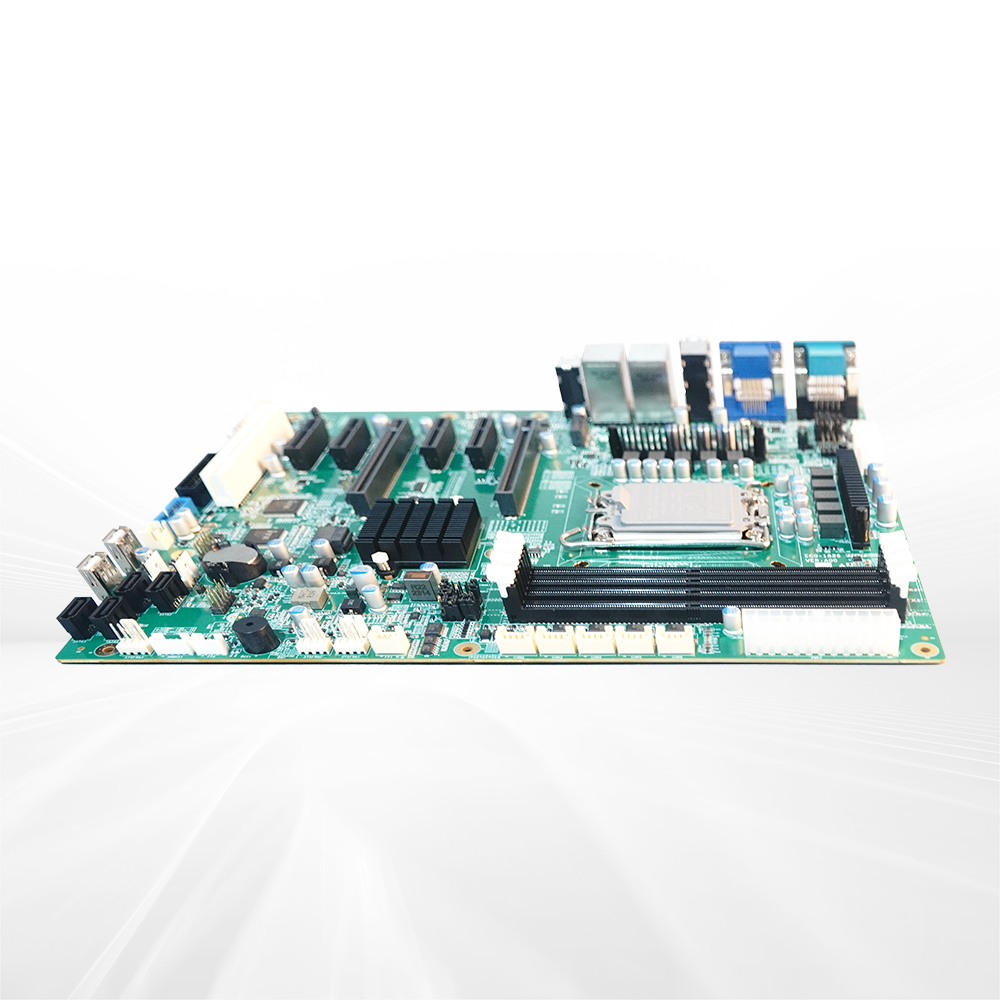

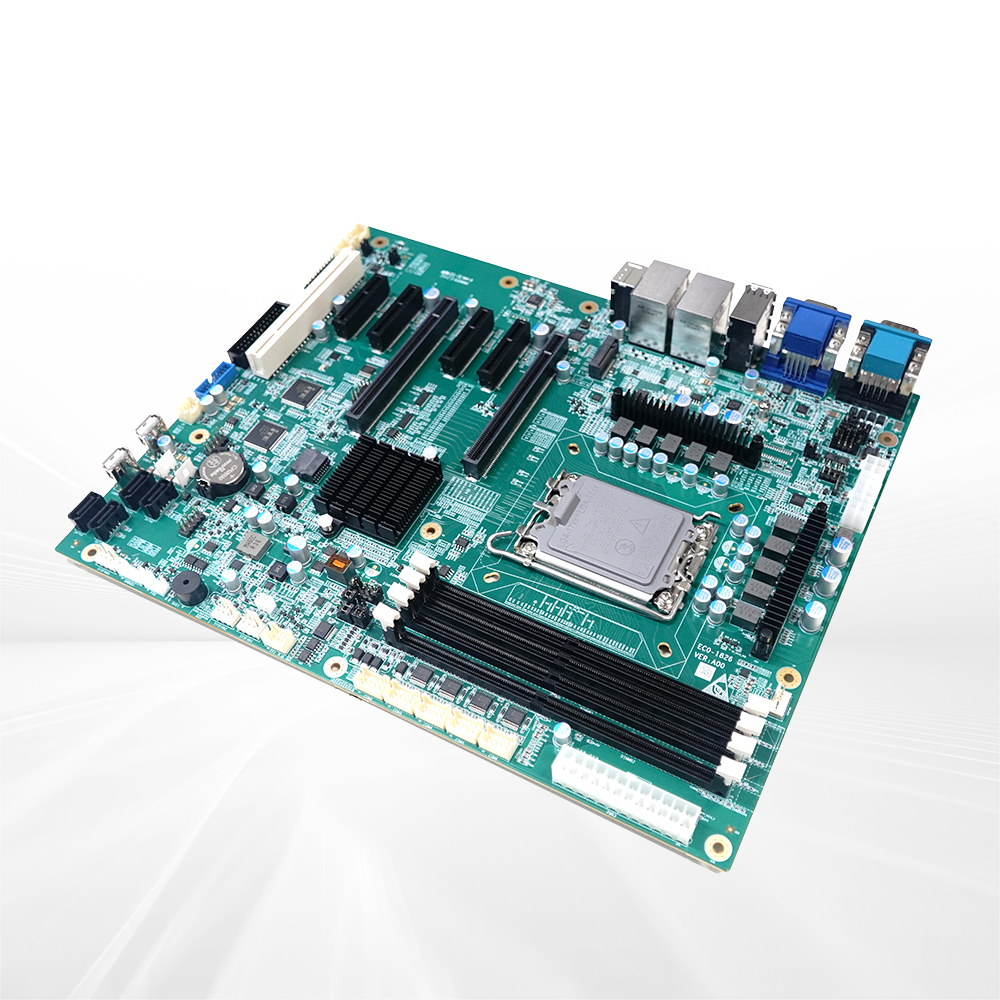

EC0-1826 ATX Industrial Motherboard

ATX industrial single-board computer for Intel 12th/13th/14th Gen processors with 1 × PCI + 6 × PCIe expansion and 2.5 GbE.

Processor

Intel LGA1700 12th/13th/14th Gen processor

Memory

4 × DDR4 non-ECC U-DIMM slots, 32 GB each,

Ethernet

1 × 10/100/1000 Mbps + 1 × 10/100/1000/250

Power

ATX PSU input

Operating Temp

-10 to 60 °C

Dimensions

305 (L) × 244 (W) mm

The EC0-1826 is an ATX-format industrial motherboard supporting Intel LGA1700 12th, 13th and 14th Gen processors up to 125 W on the Intel Q670E chipset. It delivers four DDR4 U-DIMM slots (up to 128 GB), triple display via VGA/DP/HDMI 2.0, six COM ports, a 2.5 GbE port with WoL, four SATA 3.0 with RAID, and a wide 1 × PCI + 6 × PCIe expansion layout for industrial control and machine vision systems.

✓2.5 GbE networking
✓1 × PCI + 6 × PCIe expansion
✓VGA / DP / HDMI 2.0 triple display
✓Intel 12th/13th/14th Gen support

Request a Quote Ask a Question

Full Specifications

Overview

Processor

Intel LGA1700 12th/13th/14th Gen processors, up to 125 W

Chipset

Intel Q670E

Memory

4 × DDR4 non-ECC U-DIMM slots, 32 GB each, up to 128 GB

I/O & Expansion

Display

Triple display: VGA, DP, HDMI 2.0

Audio

Mic-in, line-out

Ethernet

1 × 10/100/1000 Mbps + 1 × 10/100/1000/2500 Mbps LAN; LAN1 WoL

I/O Ports

6 COM (COM1/2 RS232/422/485 selectable); edge: 2 × USB 3.2 Gen2, 2 × USB 3.2 Gen1, 4 × USB 2.0; onboard: 2 × USB 3.2 Gen1, 4 × USB 2.0 (2 Type-A), 8-ch digital I/O, TPM, LPT, PS/2 header

Expansion

1 × PCI, 1 × PCIe 3.0 x4, 3 × PCIe 4.0 x4, 2 × PCIe 4.0 x16 (x8 when both used), 1 × M.2 Key-M (PCIe 4.0 x4, 2242/2280)

Storage

4 × SATA 3.0 with RAID 0/1/5/10

Power & Environment

Power Supply

ATX PSU input

Operating Environment

-10 to 60 °C

Storage Environment

-40℃～85℃

Humidity

40 °C at 95% RH, non-condensing

Physical

Dimensions

305 (L) × 244 (W) mm

Software & Management

OS Support

Windows 10 (21H1+), Windows 11, recent-kernel Linux

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
