EC3-1822 3.5" Embedded Industrial Motherboard

3.5" embedded motherboard with onboard Intel Elkhart Lake CPU (J6412/N6211/X6425E), triple display and 4G/5G-ready M.2.

Processor

Onboard Intel Elkhart Lake CPU: Celeron J6

Memory

1 × 260-pin DDR4 SO-DIMM, up to 3200 MHz,

Ethernet

2 × 10/100/1000 Mbps LAN

Power

Standard DC 12 V input; optional DC 9–36 V

Operating Temp

-10 to +60 °C

Dimensions

146.1 (L) × 101.6 (W) mm

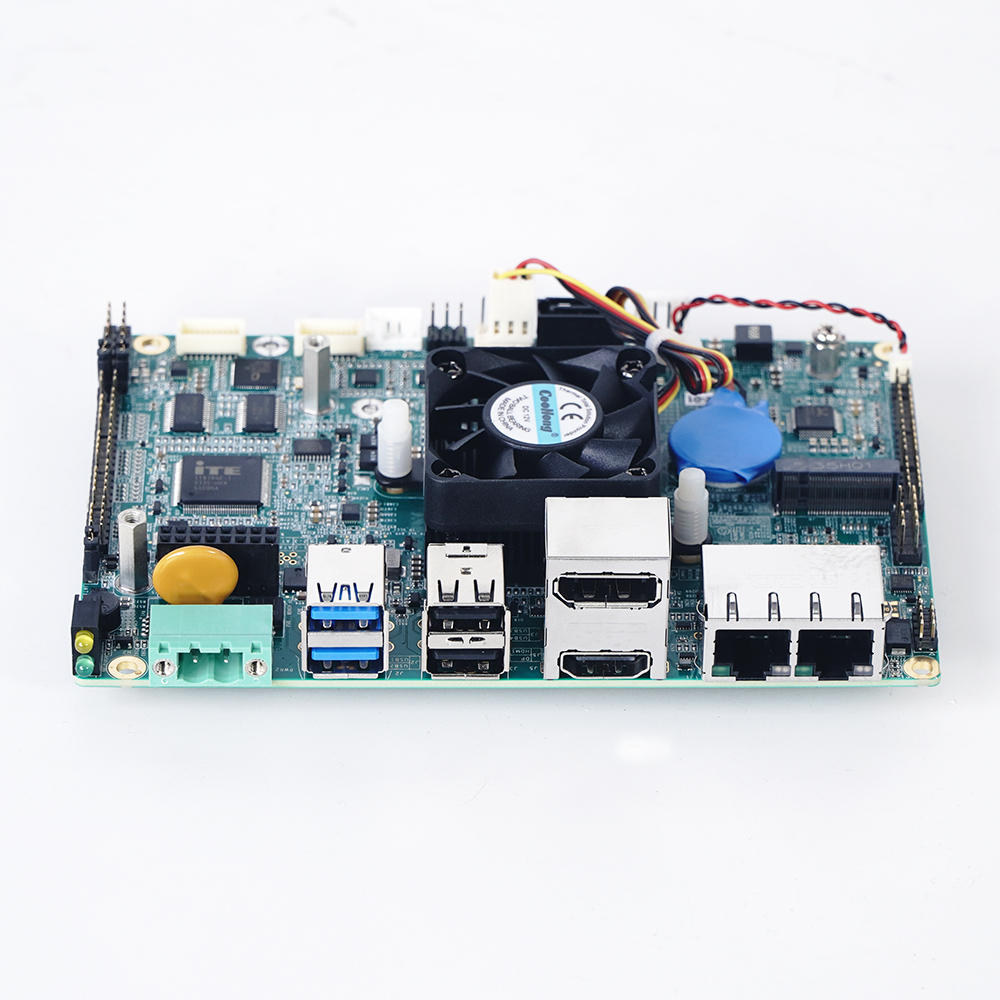

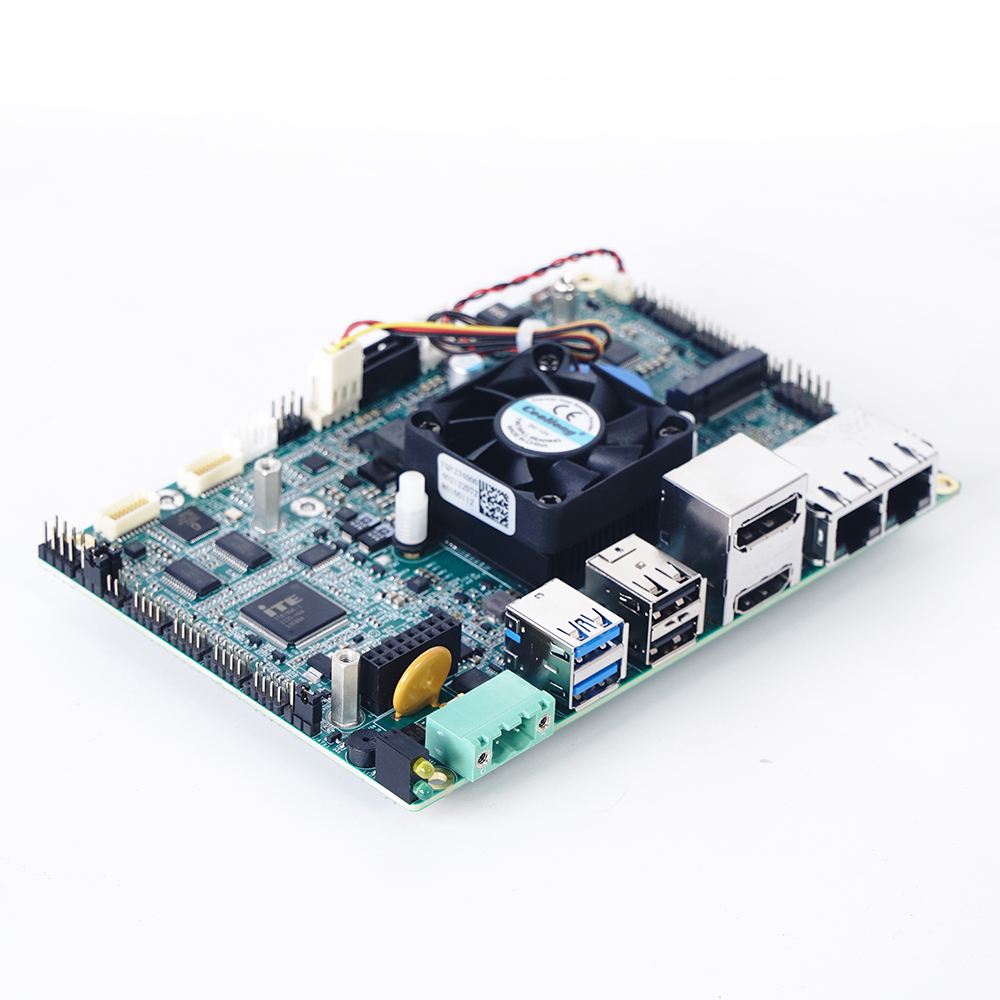

The EC3-1822 is a 3.5-inch embedded industrial motherboard with an onboard low-power Intel Elkhart Lake processor (Celeron J6412, N6211 or Atom x6425E). It supports HDMI 2.0, DP 1.4 and LVDS displays, dual Gigabit Ethernet, TPM 2.0 security, and M.2 slots for Wi-Fi and 4G/5G cellular with SIM — ideal for edge gateways, medical devices and intelligent vending equipment.

✓HDMI 2.0 / DP 1.4 / LVDS display
✓Rich I/O connectivity
✓Onboard low-power processor

Request a Quote Ask a Question

Full Specifications

Overview

Processor

Onboard Intel Elkhart Lake CPU: Celeron J6412 / N6211 / Atom x6425E

Memory

1 × 260-pin DDR4 SO-DIMM, up to 3200 MHz, max 32 GB

I/O & Expansion

Display

HDMI 2.0, DP 1.4, LVDS

Audio

HDA audio: mic-in, line-in, line-out

Ethernet

2 × 10/100/1000 Mbps LAN

I/O Ports

Onboard: 2 × USB 3.1 Gen2 (10 Gbps), 2 × USB 2.0 (Type A), 2 internal USB 2.0, 2 × RS232/422/485 + 2 × RS232, TPM 2.0 header, HDD/power LEDs, 16-ch GPIO

Expansion

1 × M.2 E-key 2230 (USB 2.0 + PCIe x1, Wi-Fi), 1 × M.2 B-key 3052 (USB 3.0) with SIM slot for 4G/5G

Storage

1 × SATA 3.0, 1 × M.2 2242 Key-M (SATA 3.0)

Power & Environment

Power Supply

Standard DC 12 V input; optional DC 9–36 V wide-range module

Operating Environment

-10 to +60 °C

Storage Environment

-40 to +85 °C

Humidity

40 °C at 95% RH, non-condensing

Physical

Dimensions

146.1 (L) × 101.6 (W) mm

Software & Management

OS Support

Windows 10/11 64-bit, Ubuntu, recent-kernel Linux

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
