EIS-2210-FTFT 2U Phytium Server

2U domestic enterprise server with dual Phytium S5000C 64-core ARM processors, 10 × DDR5 slots, 8 hot-swap bays and 1+1 redundant PSU.

Processor

Dual Phytium S5000C 64-core processors @ 2

Memory

10 × DDR5 RDIMM slots @ up to 4000 MHz, 64

Power

1+1 redundant hot-swap PSU, 1200 W / 1600

Operating Temp

0 to 40 °C

Dimensions

482.9 (W) × 88 (H) × 730 (D) mm

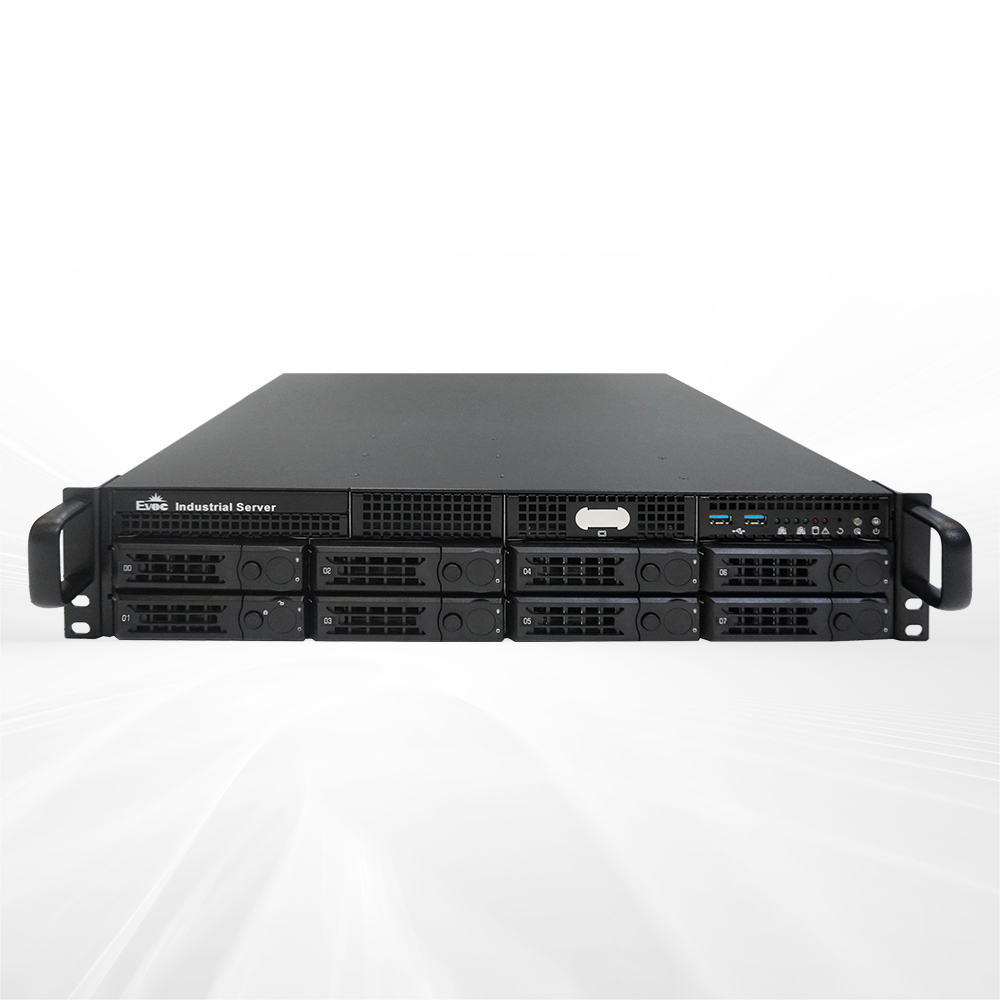

The EIS-2210-FTFT is a 2U rack-mount enterprise server powered by dual Phytium S5000C 64-core ARM processors at 2.1 GHz — the highest-performance domestic ARM CPU. It offers ten DDR5 RDIMM slots up to 4000 MHz, eight front hot-swap SATA/SAS drive bays plus onboard NVMe, five PCIe Gen5 expansion slots, a domestic BMC with IPMI/KVM-over-IP, and 1+1 redundant 1200 W/1600 W power supplies, running Kylin V10 server OS for government, finance and enterprise private-cloud workloads.

✓Rich I/O connectivity
✓Smart cooling
✓Secure and reliable
✓Extensive storage expansion
✓High-performance processors
✓Fully domestic & controllable supply chain

Request a Quote Ask a Question

Full Specifications

Overview

System Configuration

Dual Phytium S5000C 64-core processors @ 2.1 GHz — high-performance domestic ARM CPUs

Core Architecture

New FTC862 core architecture

Memory

10 × DDR5 RDIMM slots @ up to 4000 MHz, 64 GB per slot

I/O & Expansion

I/O Ports

Front: 2 × USB 3.0. Rear: 4 × GbE, 2 × 10 G SFP+, 1 management LAN, DB9 debug console, 4 × USB 3.0, VGA

PCIe Expansion

Doubled PCIe bandwidth; 5 slots: 2 × PCIe x16 (Gen5) + 3 × PCIe x8 (≥2 Gen5)

Storage

8 front hot-swap 2.5"/3.5" SATA/SAS bays + 2 onboard M.2 2242/2280 NVMe

RAID Support

8 onboard SATA 3.0 ports; RAID 0/1/5/6/10 via add-in card

Power & Environment

Operating Temperature

0 to 40 °C

Storage Environment

-40 to +55 °C, 5%–90% RH non-condensing

Power Supply

1+1 redundant hot-swap PSU, 1200 W / 1600 W

Physical

Dimensions

482.9 (W) × 88 (H) × 730 (D) mm

Software & Management

Management

Domestic BMC (HW + firmware): IPMI, SOL, KVM over IP, virtualization

OS Support

Kylin V10 server OS and mainstream Linux

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
