IPC-520S Mini-tower Industrial PC

Compact mini-tower industrial computer for Mini-ITX boards with Intel H110/C236 chipsets and one PCIe x16 expansion slot.

Processor

Intel LGA1151 6th/7th Gen Core processors

Memory

1 × DDR4 U-DIMM slot, up to 16 GB

Power

Mini-ATX industrial PSU

Operating Temp

0 to 50 °C, 5% to 90% RH (non-condensing)

Dimensions

250 × 210 × 88 mm (W×D×H)

The IPC-520S is a small-footprint mini-tower industrial computer supporting Mini-ITX motherboards on Intel H110 or C236 platforms with 6th/7th Gen Core processors. It packs four COM ports, dual Gigabit LAN, VGA and HDMI into a 250 × 210 × 88 mm body, with one PCIe x16 slot for expansion cards and an industrial-grade Mini-ATX power supply.

✓Rich I/O connectivity
✓Highly expandable
✓Compact footprint

Request a Quote Ask a Question

Full Specifications

Overview

Motherboard

Supports Mini-ITX motherboards

Chipset

Intel H110 / C236 chipset

Processor

Intel LGA1151 6th/7th Gen Core processors

Memory

1 × DDR4 U-DIMM slot, up to 16 GB

I/O & Expansion

I/O Ports

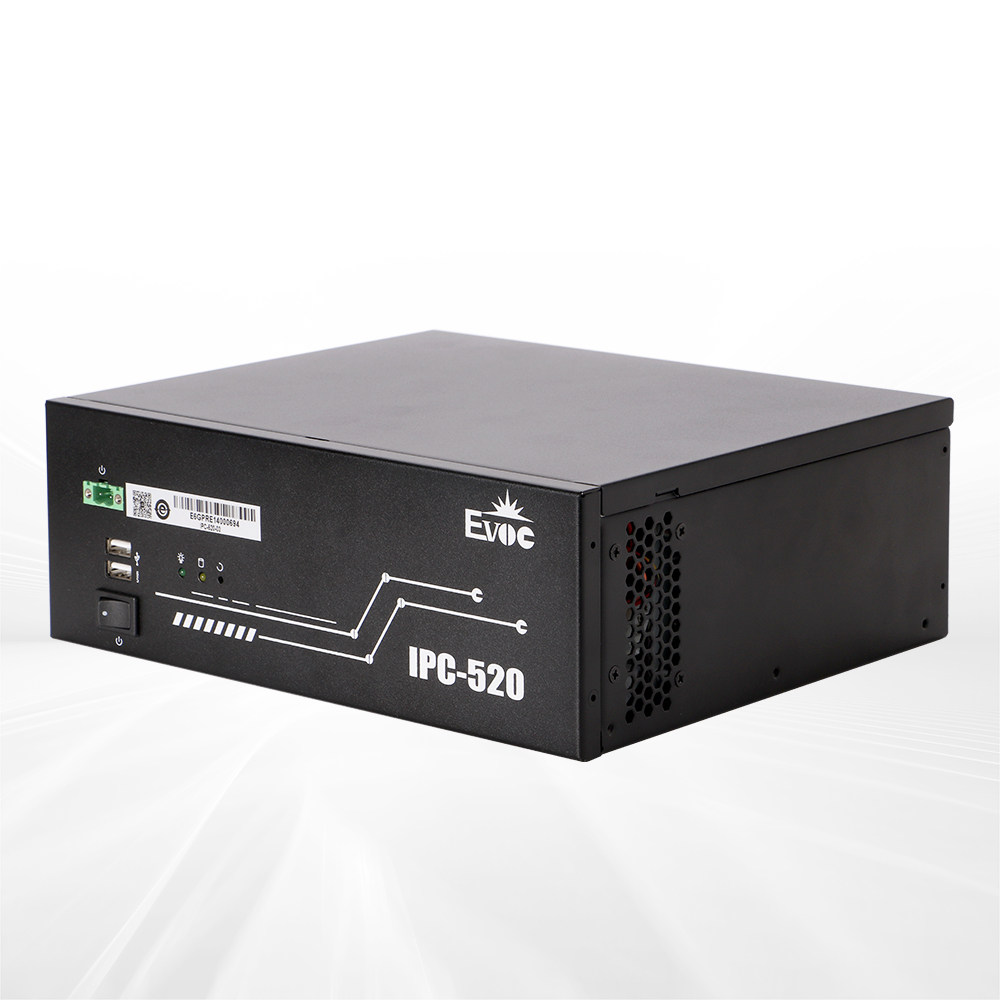

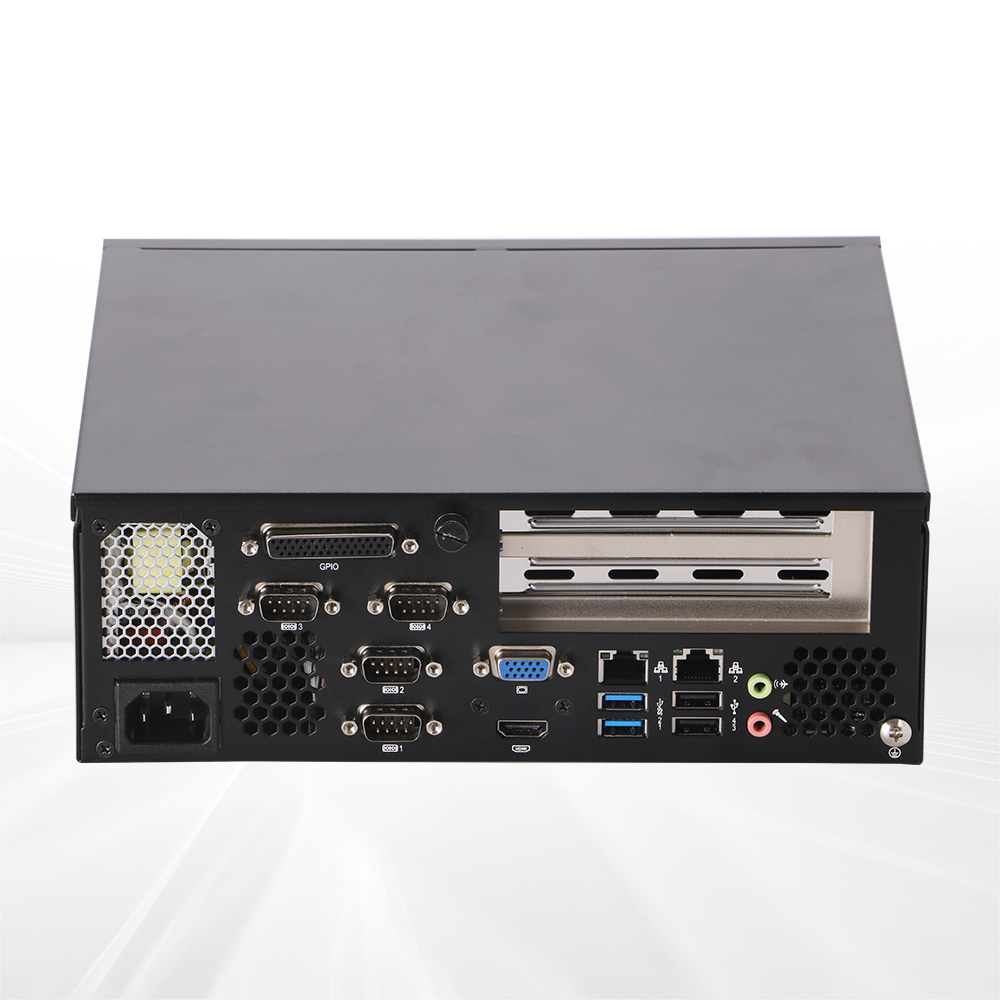

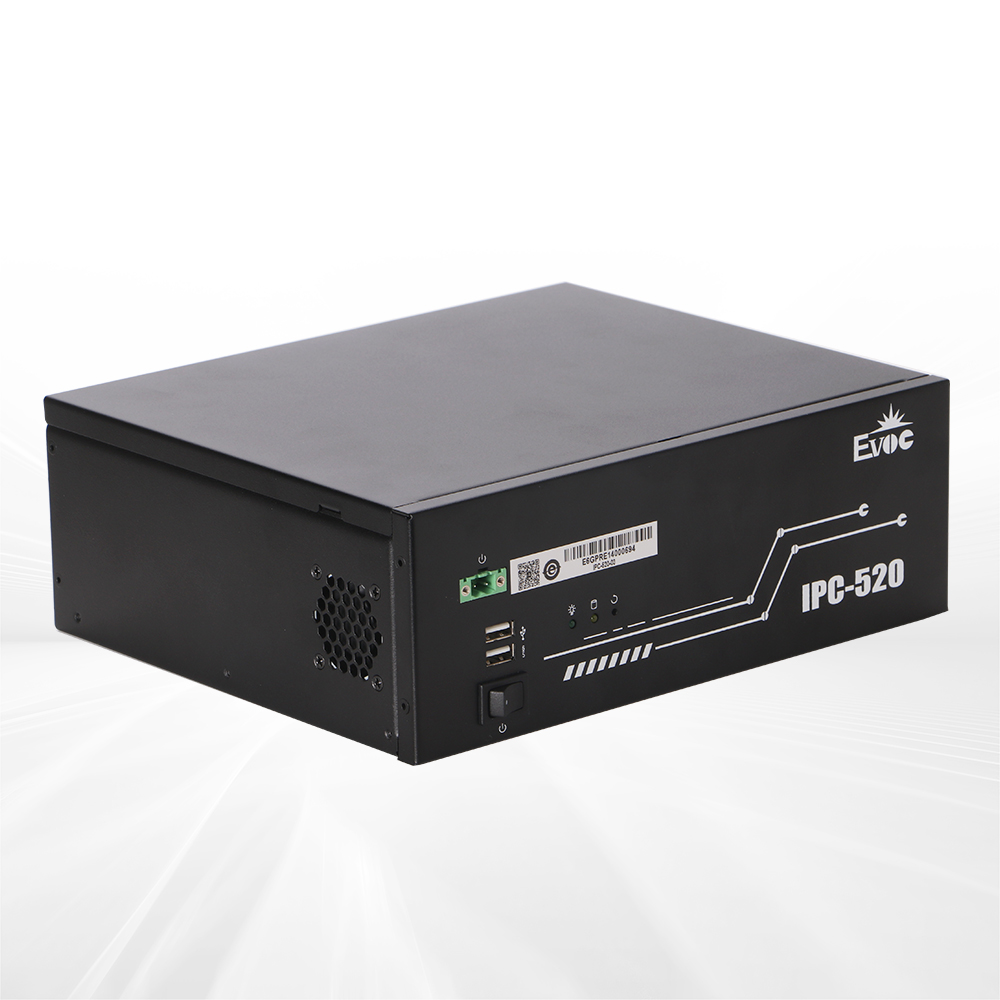

Rear: 2 × USB 3.0, 2 × USB 2.0, 4 × COM (COM1/2 RS232/RS422/RS485), VGA, HDMI, 2 × GbE, ATX power, line-in/out, 16-bit GPIO via DB44. Front: 2 × USB 2.0, power switch, terminal block

Expansion

1 × PCIe x16

Storage

1 shock-mounted 2.5" bay (no ODD)

Power & Environment

Operating Temperature

0 to 50 °C, 5% to 90% RH (non-condensing)

Storage Temperature

-20 to 60 °C, 5% to 90% RH (non-condensing)

Power Input

Mini-ATX industrial PSU

Physical

Dimensions

250 × 210 × 88 mm (W×D×H)

Software & Management

OS Support

Windows 7 / 8 / 10, Linux

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
