IPC-620Rackmount & Box Industrial PCs

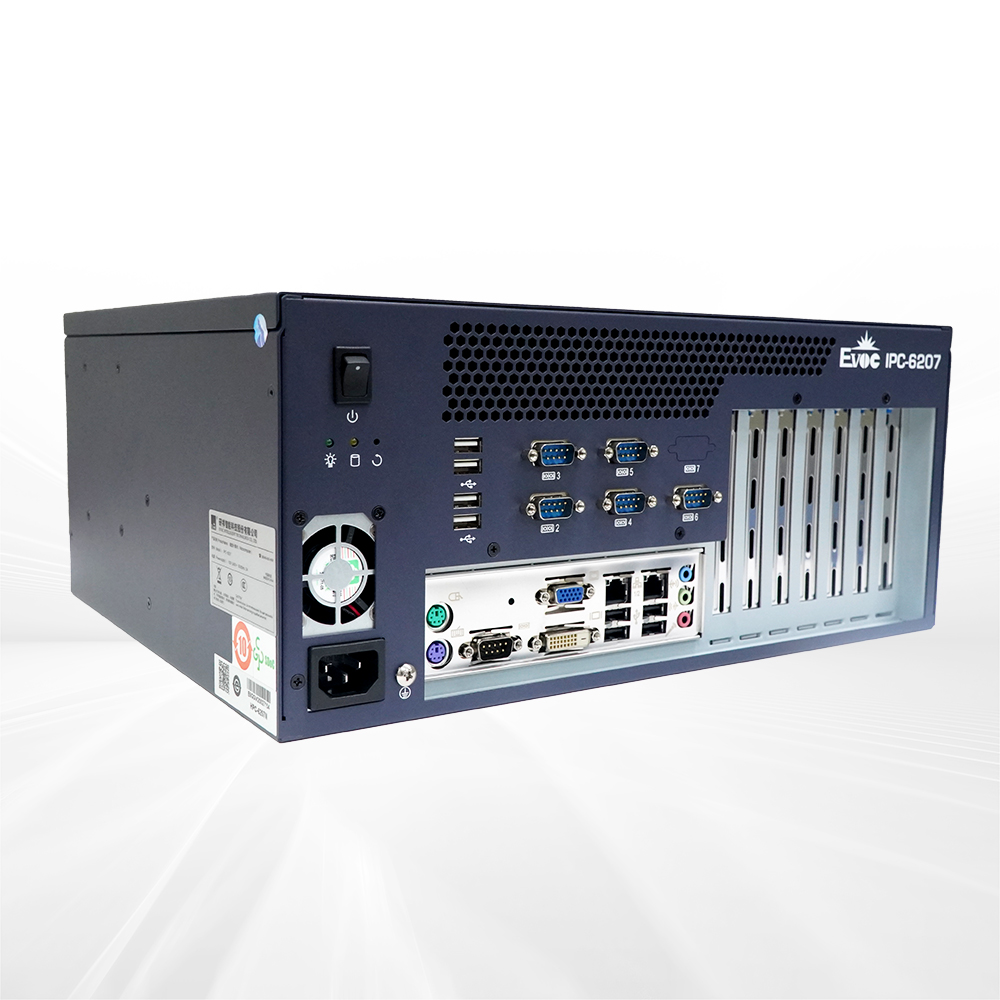

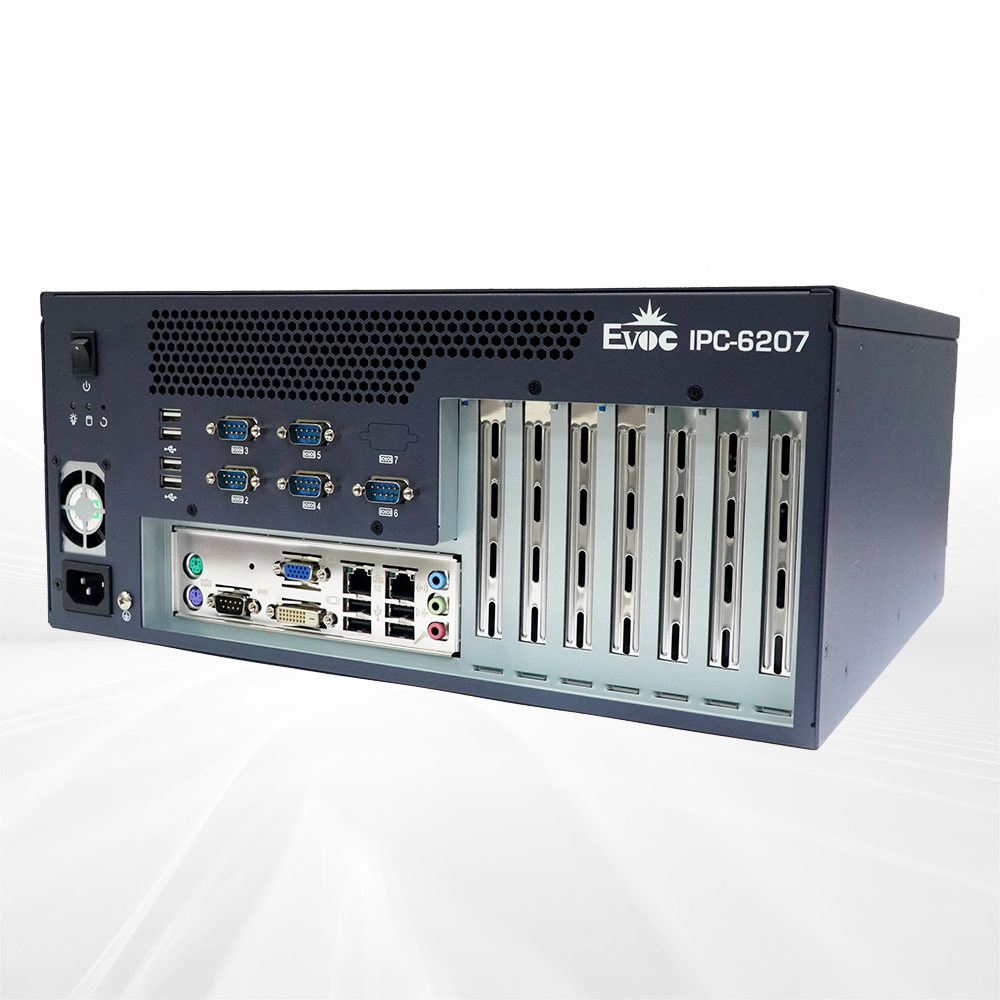

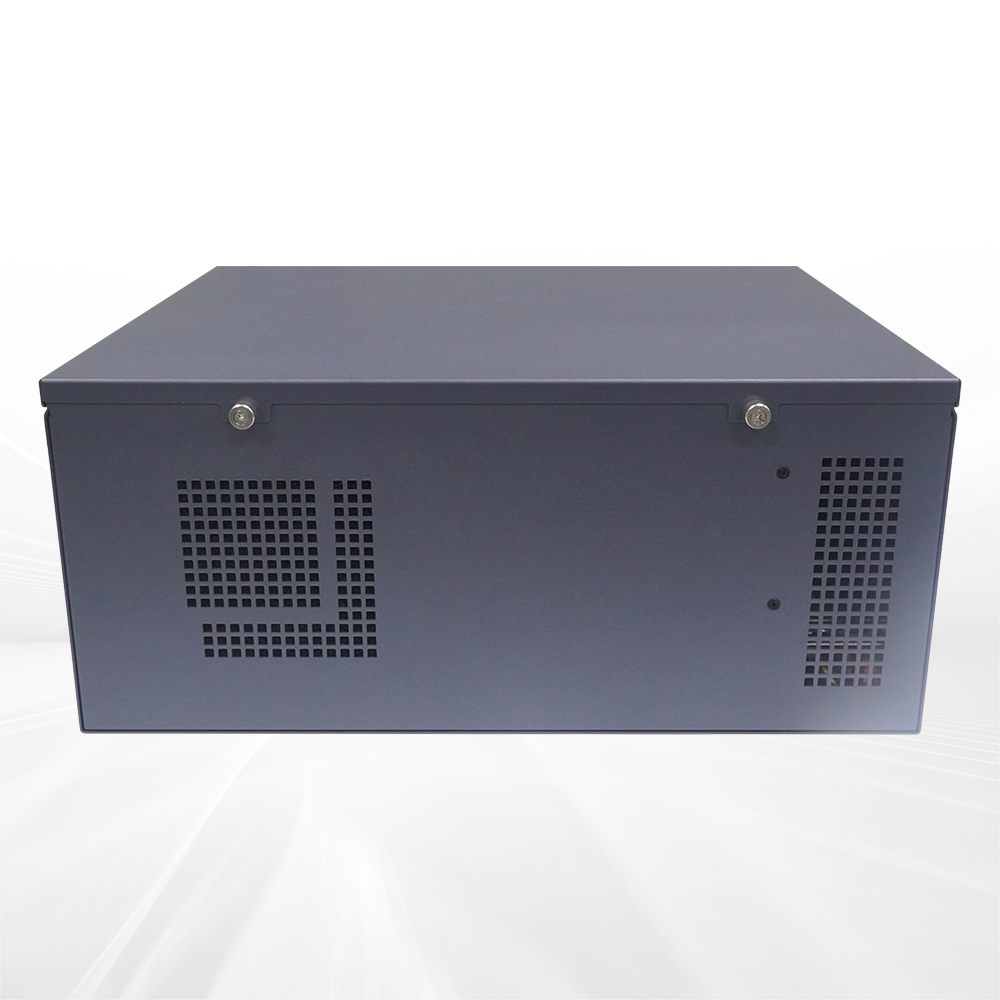

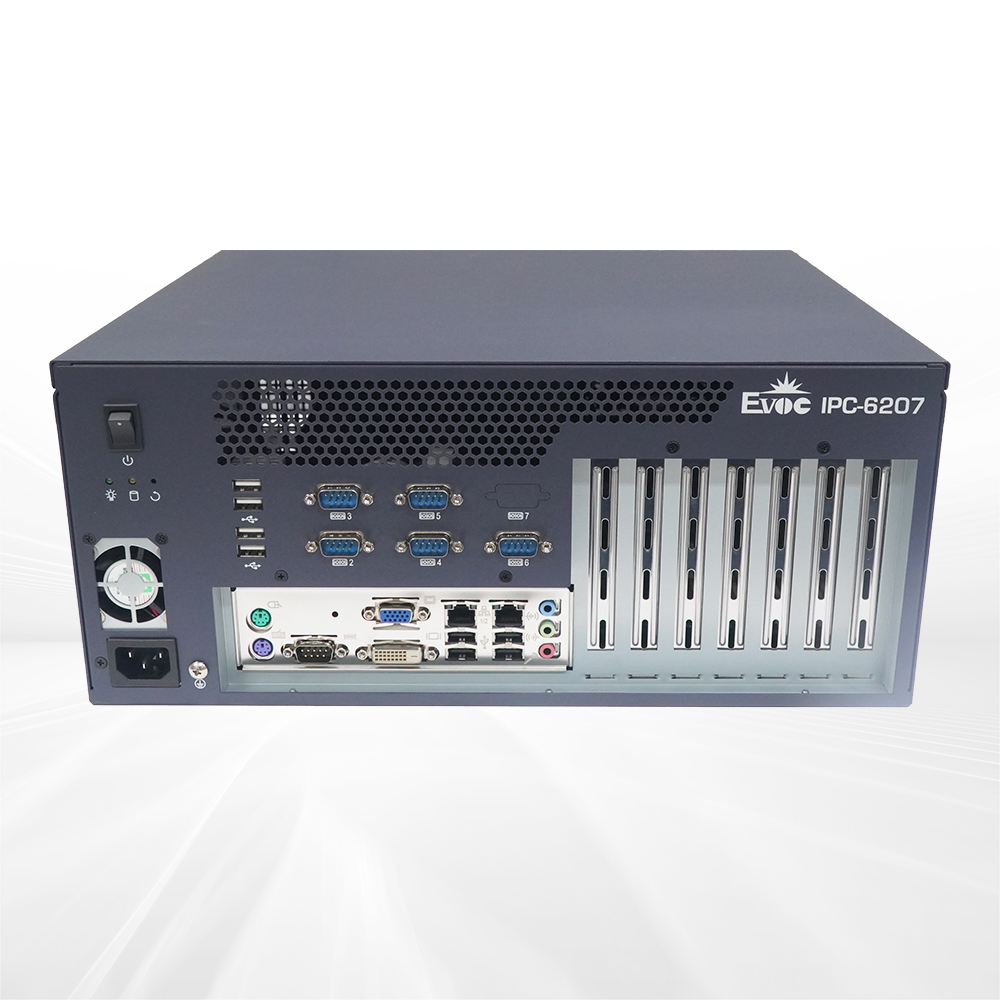

IPC-620 Seven-slot Wall-mount Box PC

Classic 7-slot wall-mount industrial computer with two shock-mounted 3.5" drive bays and EC0/ECS motherboard compatibility.

Power

1U PSU

Operating Temp

0 to 50 °C, 5% to 90% RH (non-condensing)

Dimensions

380 × 164 × 316 mm; expansion card length

The IPC-620 is a seven-slot compact wall-mount chassis that works with EC0/ECS series industrial motherboards. All I/O ports are located on the same side, which simplifies wiring and service in control cabinets. It offers two shock-mounted 3.5" drive bays and a 1U power supply, making it a dependable workhorse for factory automation and on-site control applications.

✓Seven expansion slots
✓All I/O ports on one side
✓Multi-platform support

Request a Quote Ask a Question

Full Specifications

Overview

Motherboard

Compatible with EC0/ECS series motherboards

I/O & Expansion

I/O Ports

Power switch, reset switch, power & HDD LEDs

Storage

2 shock-mounted 3.5" drive bays

Power & Environment

Power Supply

1U PSU

Operating Temperature

0 to 50 °C, 5% to 90% RH (non-condensing)

Storage Temperature

-20 to 60 °C, 5% to 90% RH (non-condensing)

Physical

Dimensions

380 × 164 × 316 mm; expansion card length ≤ 270 mm

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
