IPC-620H Compact Wall-mount Box PC

Small-footprint wall-mount industrial computer with a flip-top chassis, rich I/O and space for 4 expansion slots — made for 3C manufacturing, machine vision and self-service terminals.

Power

Compact PS2 ATX PSU or 1U PSU

Operating Temp

0 to 50 °C, 5% to 90% RH (non-condensing)

Dimensions

280 × 165 × 238 mm (W×H×D)

The IPC-620H is a compact wall-mount box PC built around dedicated ECS motherboards with H81, H110 or H310 platforms. Despite its small size it keeps strong expansion capability and a rich I/O layout, with all ports facing one side for easy cabling in tight enclosures. Typical applications include 3C manufacturing, machine vision, security inspection, highway tolling and self-service kiosks.

✓Rich I/O connectivity
✓Flip-top design, easy maintenance
✓Compact with strong expansion

Request a Quote Ask a Question

Full Specifications

Overview

Motherboard

Dedicated ECS motherboards: ECS-1830 (H81), ECS-1839 (H110), ECS-1852 (H310)

I/O & Expansion

I/O Ports

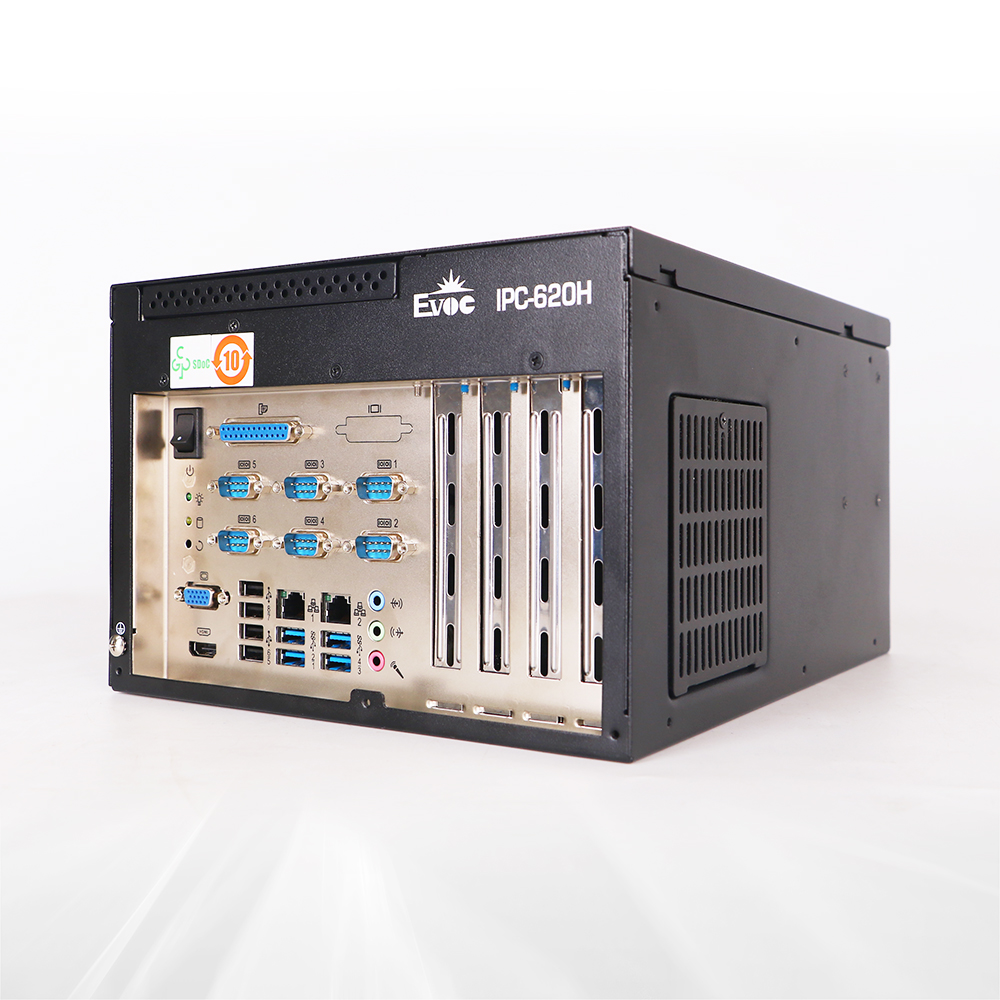

All I/O ports on one side (depends on motherboard platform)

Storage

1 shock-mounted 2.5" bay + 1 slim ODD bay (accepts a 2.5" drive)

Power & Environment

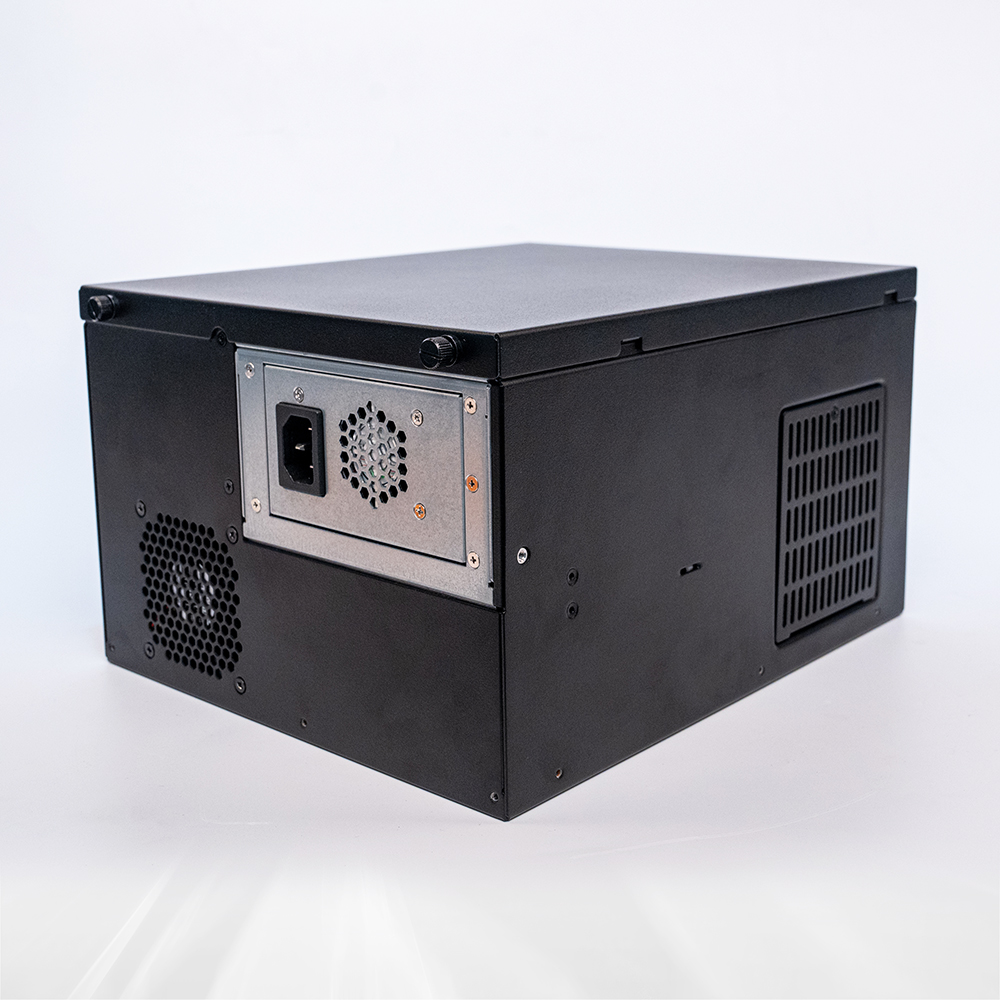

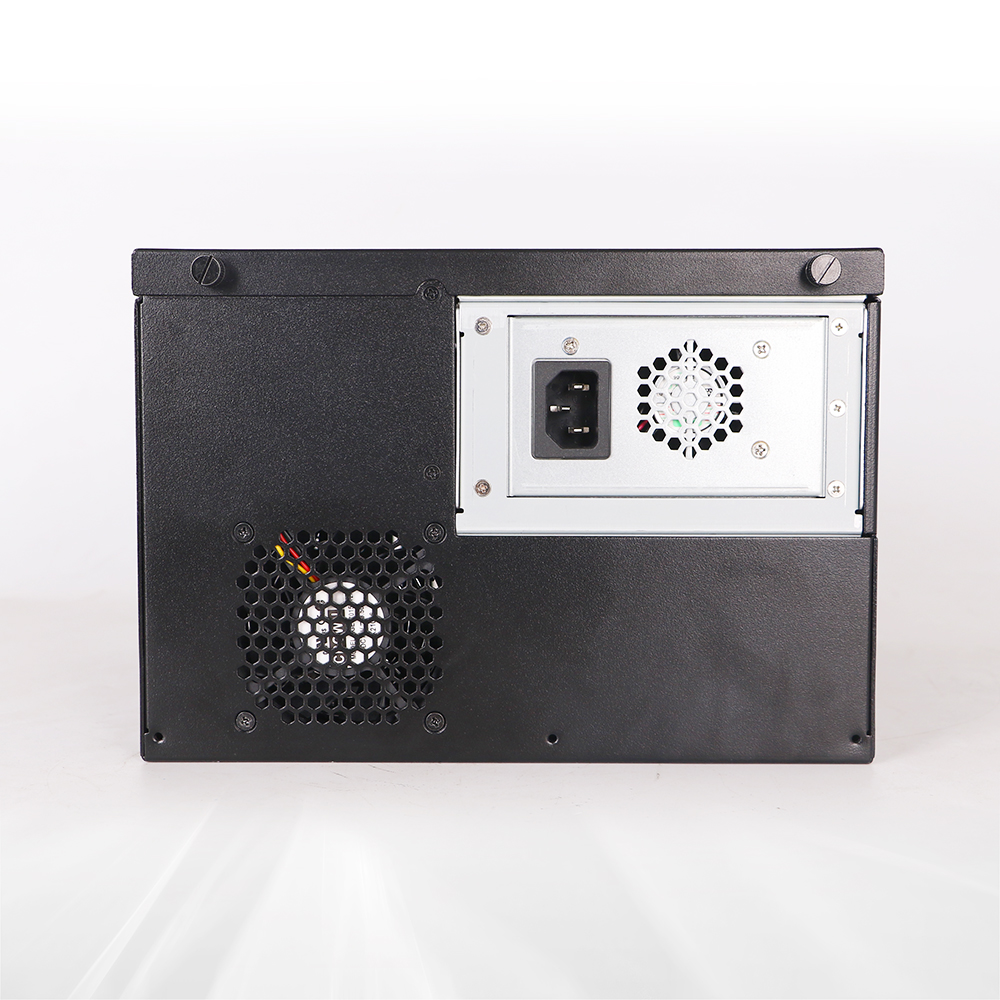

Power Supply

Compact PS2 ATX PSU or 1U PSU

Operating Temperature

0 to 50 °C, 5% to 90% RH (non-condensing)

Storage Temperature

-20 to 60 °C, 5% to 90% RH (non-condensing)

Physical

Dimensions

280 × 165 × 238 mm (W×H×D)

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
