IPC-810ERackmount & Box Industrial PCs

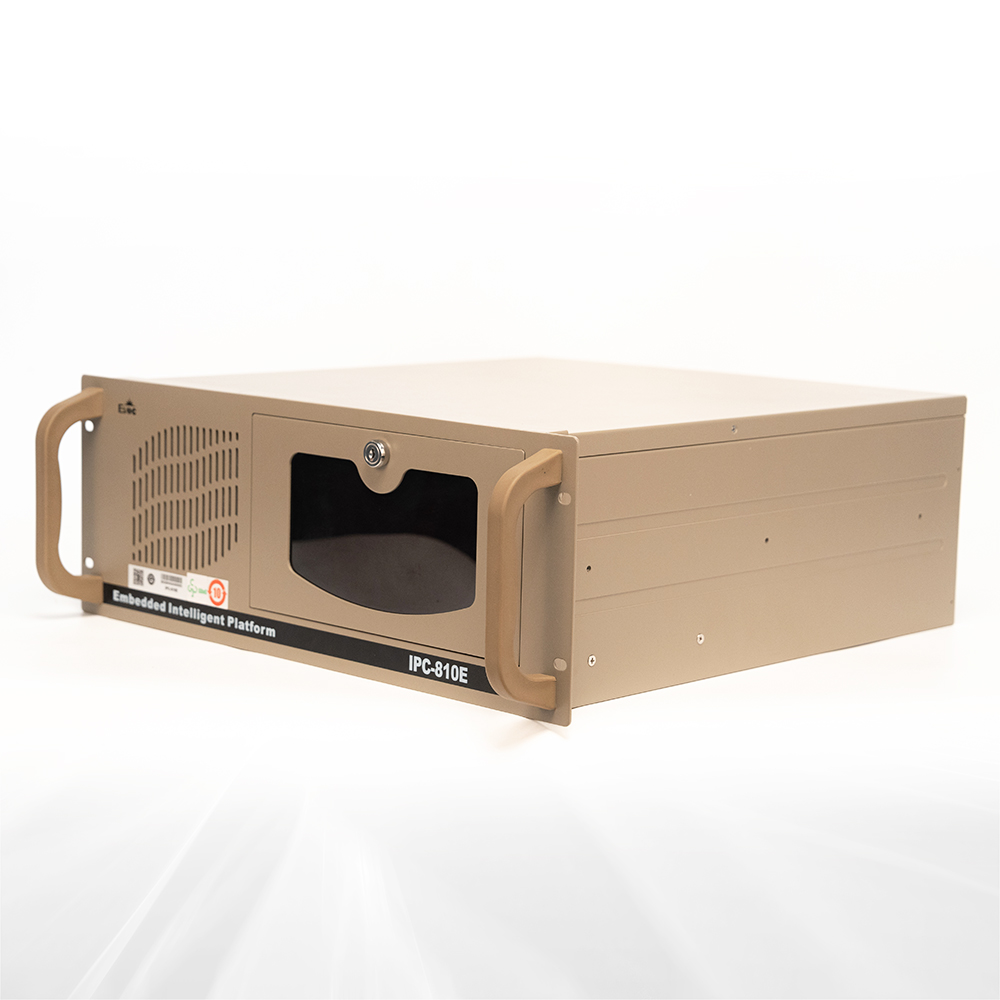

IPC-810E 4U Rack-mount IPC
4U rack-mount industrial computer with lockable front door, superior cooling, excellent EMC and EPE/ATX motherboard support.
Power
Standard ATX PSU
Operating Temp
0 to 50 °C, 5% to 90% RH (non-condensing)
Dimensions
482 × 177 × 470.4 mm (W×H×D)

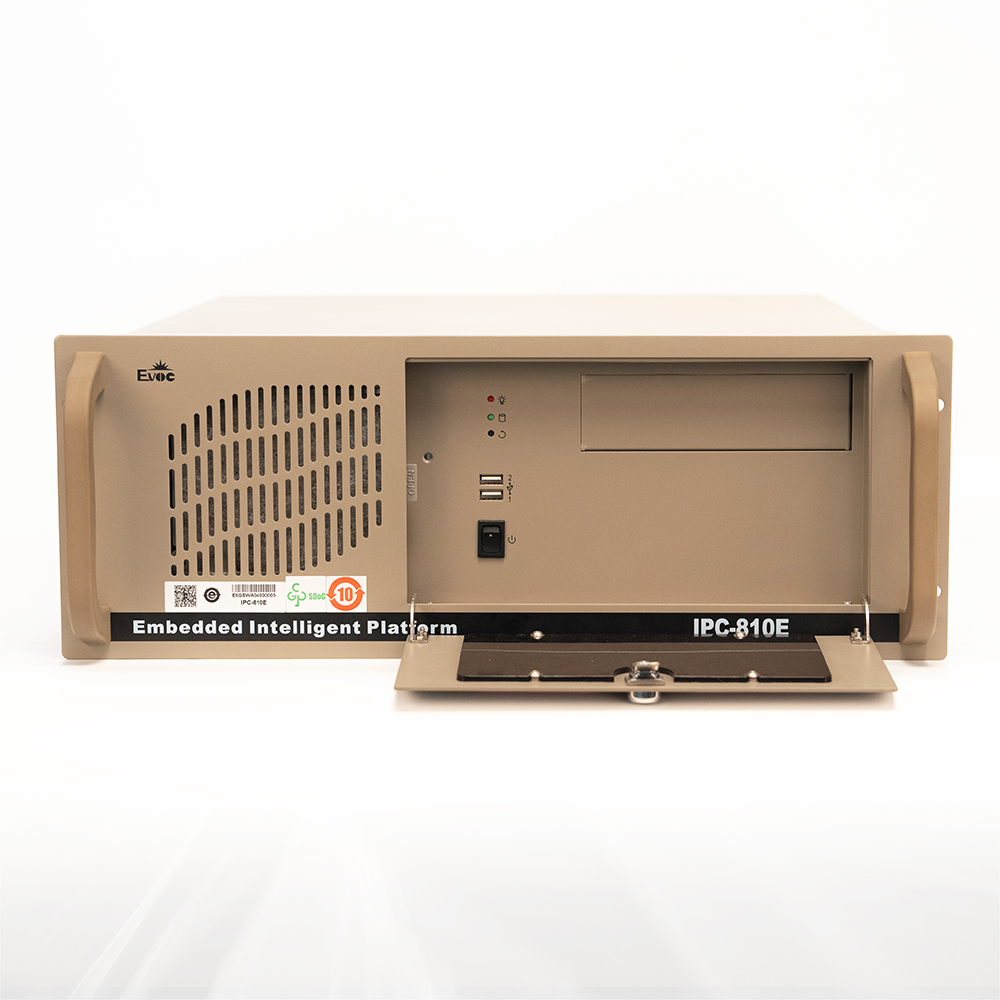

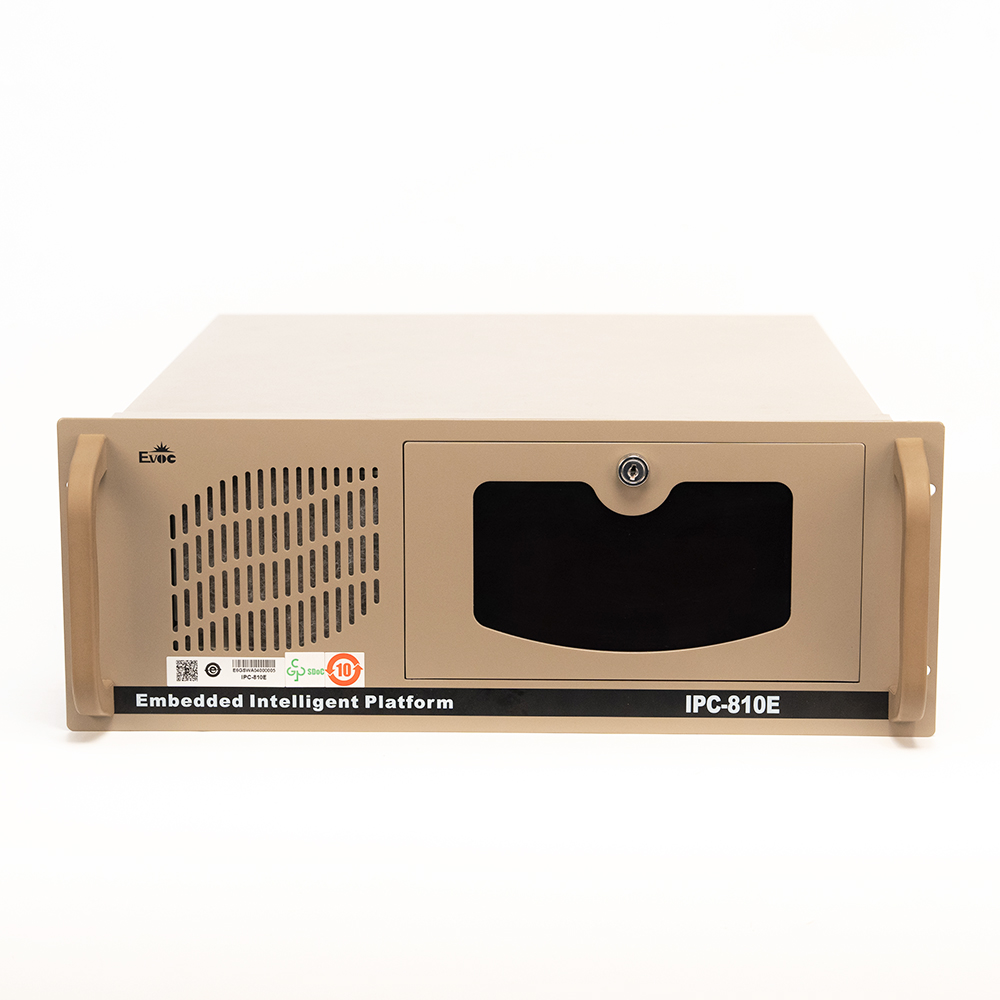

The IPC-810E is a standard 4U rack-mount industrial computer chassis supporting EPE full-length cards, ATX single-board computers and EPE backplanes. It features a lockable front door, excellent EMC performance and strong airflow for reliable 24/7 operation, with one 5.25" ODD bay and two shock-mounted 3.5" drive bays.
- ✓Excellent EMC performance
- ✓Superior cooling
- ✓Wide motherboard compatibility
- ✓Standard 4U rack-mount
Full Specifications
Overview
Compatible Motherboard
EPE full-length cards / ATX single-board computers
Backplane
EPE series backplane
I/O & Expansion
I/O Ports
Power switch, reset switch, power/HDD LEDs, 2 front USB ports
Storage
Storage
1 × 5.25" ODD bay, 2 shock-mounted 3.5" bays, 1 extra 3.5" HDD space
Power & Environment
Power Supply
Standard ATX PSU
Operating Temperature
0 to 50 °C, 5% to 90% RH (non-condensing)
Storage Temperature
-20 to 60 °C, 5% to 90% RH (non-condensing)
Physical
Dimensions
482 × 177 × 470.4 mm (W×H×D)
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
