IPC-860 4U Rack-mount IPC with Hot-swap Bays

4U rack-mount IPC with 4 hot-swap drive bays, LCM interaction module, wide backplane options and server-board support.

Processor

Per motherboard: SVE-2901 supports dual Xe

Memory

Per motherboard: SVE-2901 (dual C612) — 16

Power

Standard PS2 ATX PSU or 2U redundant PSU

Operating Temp

ECO/EPE config: 0–50 °C; EATX server confi

Dimensions

482 × 177 × 552 mm (W×H×D)

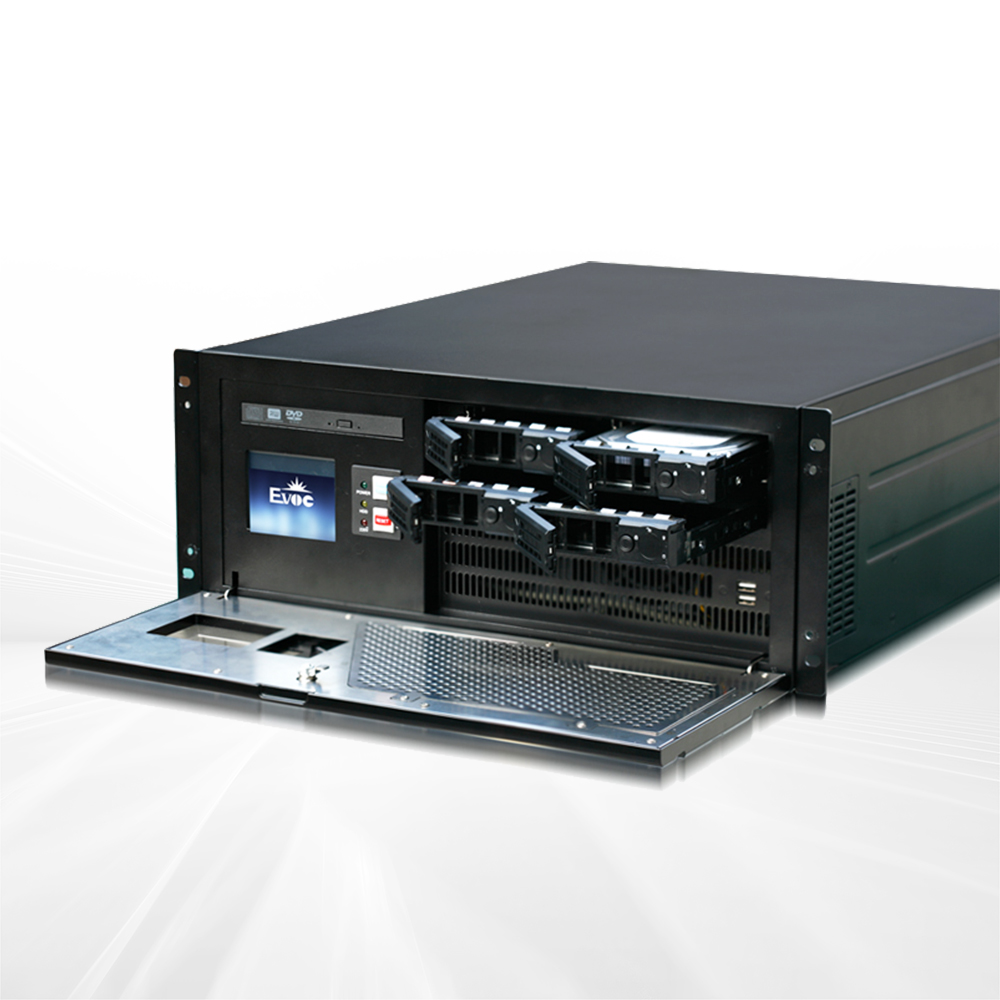

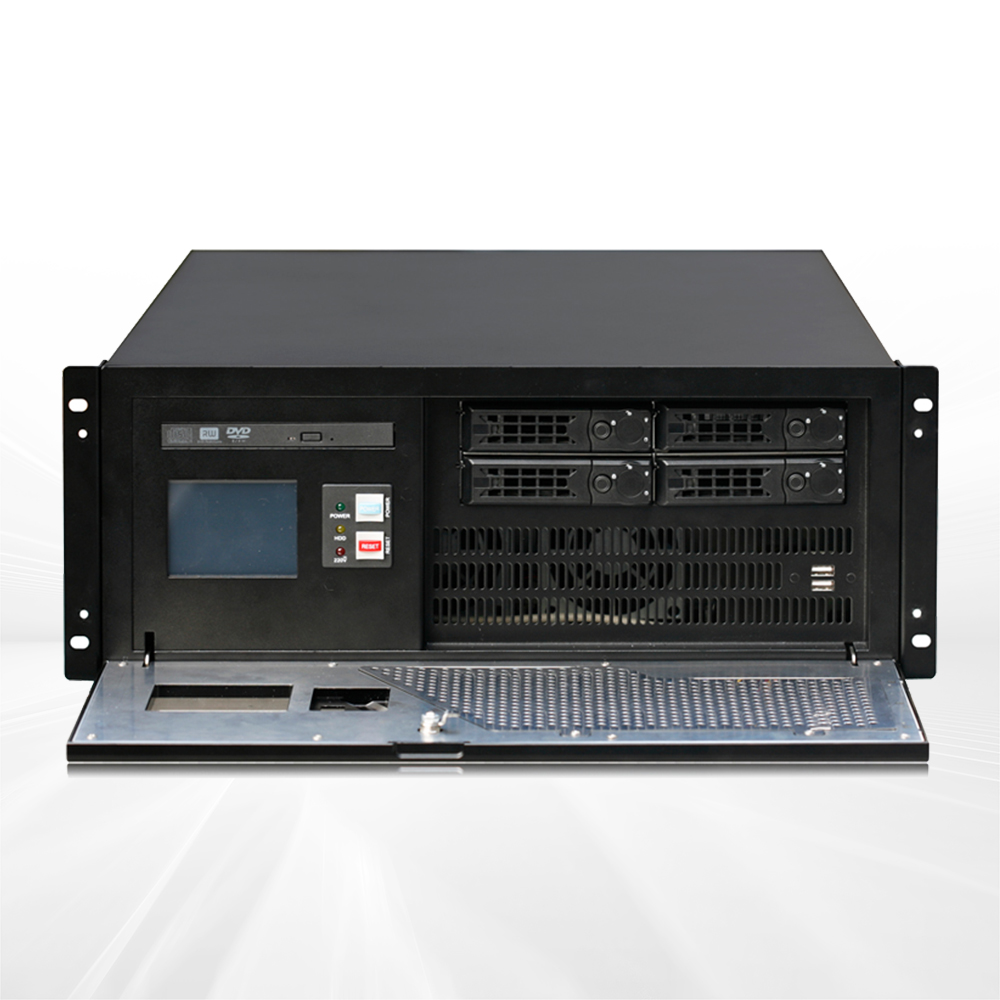

The IPC-860 is a 4U rack-mount industrial computer that accepts EPE cards, ATX boards and EATX server motherboards. It offers two hot-swap drive modules (4 non-shock or 2 shock-mounted 3.5" drives) secured behind a lockable door, an LCM interaction module, professional cooling and a 10–13-slot EPE backplane option — suitable for data-heavy edge and server-like deployments.

✓Excellent EMC performance
✓Professional cooling system
✓LCM interaction module
✓Rich expansion slots
✓4 hot-swap drive bays
✓Wide motherboard compatibility
✓Standard 4U rack-mount

Request a Quote Ask a Question

Full Specifications

Overview

Compatible Motherboard

EPE full-length cards, ATX single-board computers, EATX server motherboards

Processor

Per motherboard: SVE-2901 supports dual Xeon E5-2600 V3/V4

Memory

Per motherboard: SVE-2901 (dual C612) — 16 × 288-pin DDR4 slots, up to 512 GB DDR4 ECC RDIMM

Backplane

With EPE motherboards: 10–13-slot standard EPE backplane

I/O & Expansion

I/O Ports

Power switch, reset switch, power/HDD LEDs, 2 USB 2.0 behind lockable door; rear I/O per motherboard

Storage

Two drive modules: A — 4 × hot-swap 3.5" drives (non-shock); B — 2 × hot-swap 3.5" drives (shock-mounted). SAS supported with server boards; drives sit behind a lockable door

Power & Environment

Power Supply

Standard PS2 ATX PSU or 2U redundant PSU

Operating Temperature

ECO/EPE config: 0–50 °C; EATX server config: 0–40 °C; 5%–90% RH (non-condensing)

Storage Temperature

-20 to 60 °C, 5% to 90% RH (non-condensing)

Physical

Dimensions

482 × 177 × 552 mm (W×H×D)

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
