NPC-8230Servers & Network Platforms

NPC-8230 2U Network Security Server

2U dual-Xeon network security platform with 20 DDR4 slots, up to 2560 GB memory, 4 × 10 G SFP+ and ENS expansion — for NGFW, DPI and VPN appliances.

Processor

Dual Intel Xeon Scalable CPUs (Skylake-SP

Memory

20 × DDR4 RDIMM/LRDIMM slots, up to 2560 G

Ethernet

2 × 10/100/1000 Mbps RJ-45 management LAN,

Power

800 W ATX redundant PSU (single or redunda

Operating Temp

0–40 °C, 10%–95% RH (non-condensing)

Dimensions

NPC-8230-01/04: 440 × 88 × 653 mm; NPC-823

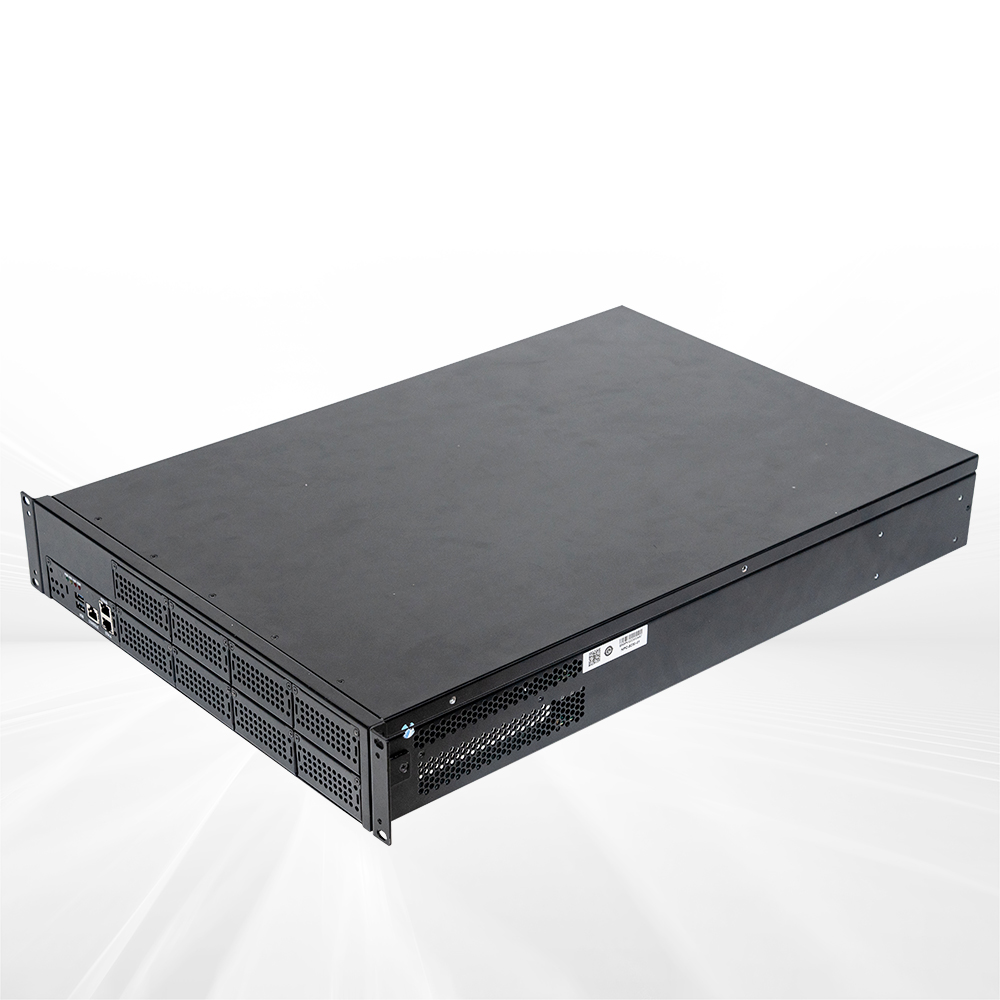

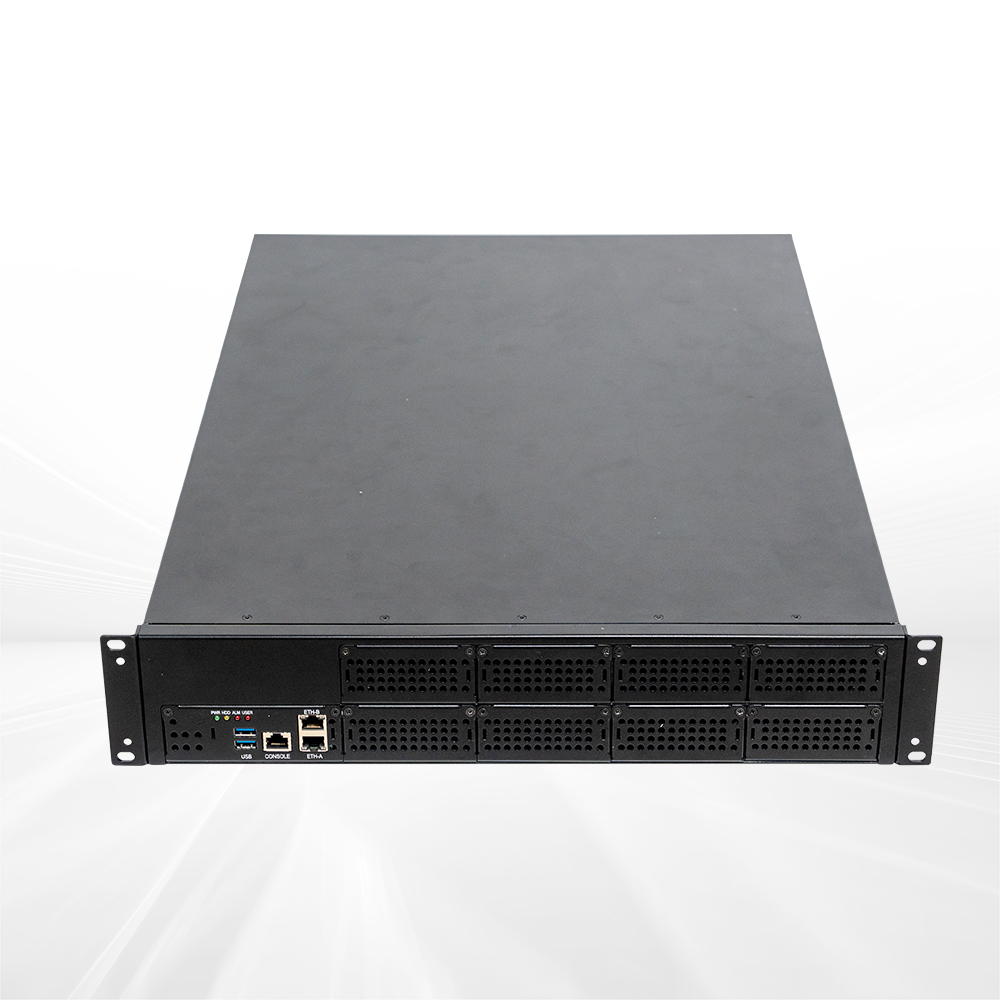

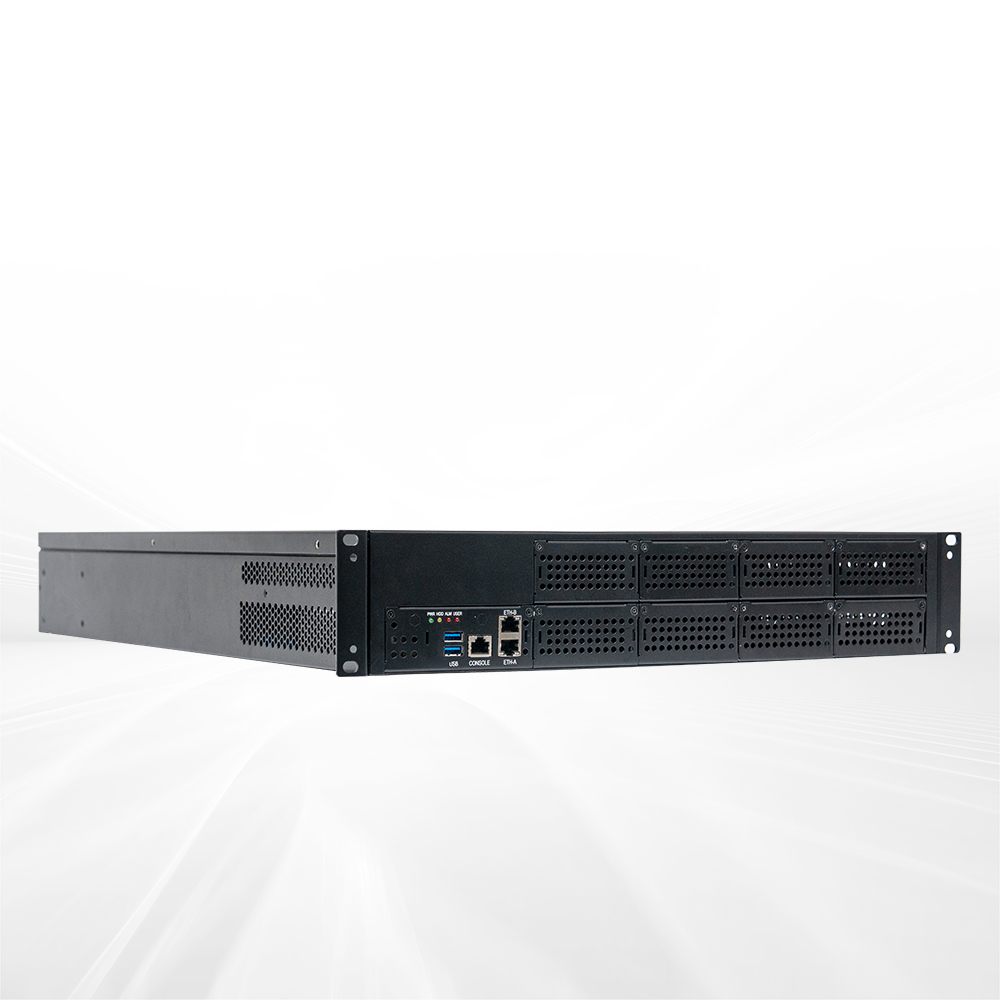

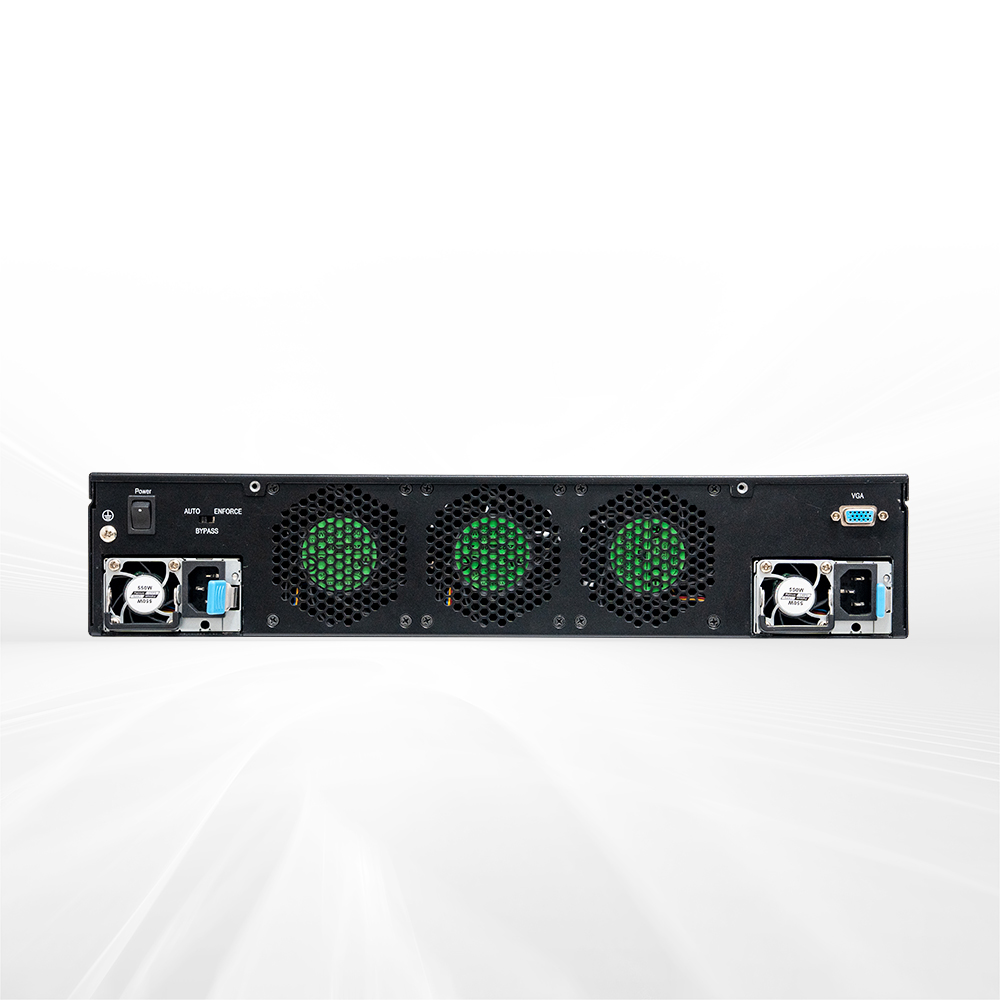

The NPC-8230 is a 2U rack-mount network security server platform supporting dual Intel Xeon Scalable processors (Skylake-SP / Cascade Lake-SP) on the C621/C627 chipset. It offers 20 DDR4 RDIMM/LRDIMM slots up to 2560 GB, four 10 G SFP+ ports, two management Gigabit ports, optional IPMI, drive encryption and 4/8 ENS expansion slots — a solid hardware base for next-generation firewalls, deep packet inspection, VPN and security gateway appliances.

✓Rich serial ports
✓Rich network interfaces
✓20 memory slots
✓Drive encryption
✓Dual-socket processors

Request a Quote Ask a Question

Full Specifications

Overview

System Configuration

Dual Intel Xeon Scalable CPUs (Skylake-SP / Cascade Lake-SP)

Chipset

Intel C621 / C627

Memory

20 × DDR4 RDIMM/LRDIMM slots, up to 2560 GB

Compatible Motherboard

NET-2816 series

I/O & Expansion

mSATA

1 × mSATA; M.2 Key-B optional on 8-ENS models

M.2

1 × M.2 Key-B 2280 (optional)

I/O Ports

Front: 2 × USB 3.0; 2 internal USB 3.0 headers

Serial Ports

1 × RJ45 COM + 1 internal RS-232 header

Display

1 × VGA

Network Controller

Intel I210 / I211

Ethernet

2 × 10/100/1000 Mbps RJ-45 management LAN, 4 × 10 G SFP+ (optional), IPMI (optional)

Expansion Bus

2 × PCIe x8, or 1 × PCIe x8 + 1 × PCIe x16

ENS Slots

4 or 8 ENS slots; 4-ENS: 3 drive bays; 8-ENS: 1 × 3.5" bay + M.2 Key-B

Storage

Storage Interfaces

4 × SATA 3.0; 4-ENS models: 3 drive bays; 8-ENS models: 1 × 3.5" bay

Power & Environment

Operating Environment

0–40 °C, 10%–95% RH (non-condensing)

Storage Environment

-20 to 70 °C, 10%–95% RH (non-condensing)

Power Supply

800 W ATX redundant PSU (single or redundant)

Physical

Dimensions (excl. ears)

NPC-8230-01/04: 440 × 88 × 653 mm; NPC-8230-02/03: 440 × 88 × 659 mm (W×H×D)

Software & Management

OS Support

Linux (CentOS, Red Hat, Ubuntu); see manual for details

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
