Home / Products / SPC-8271C

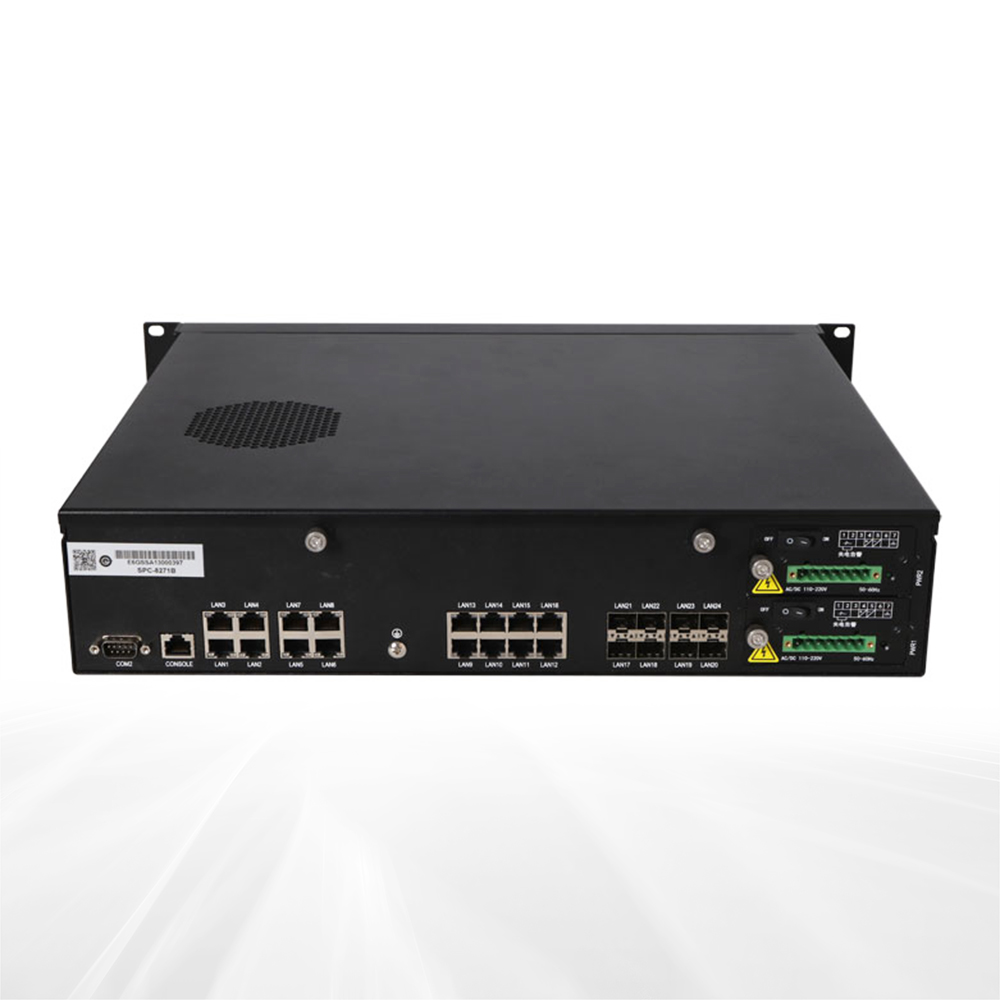

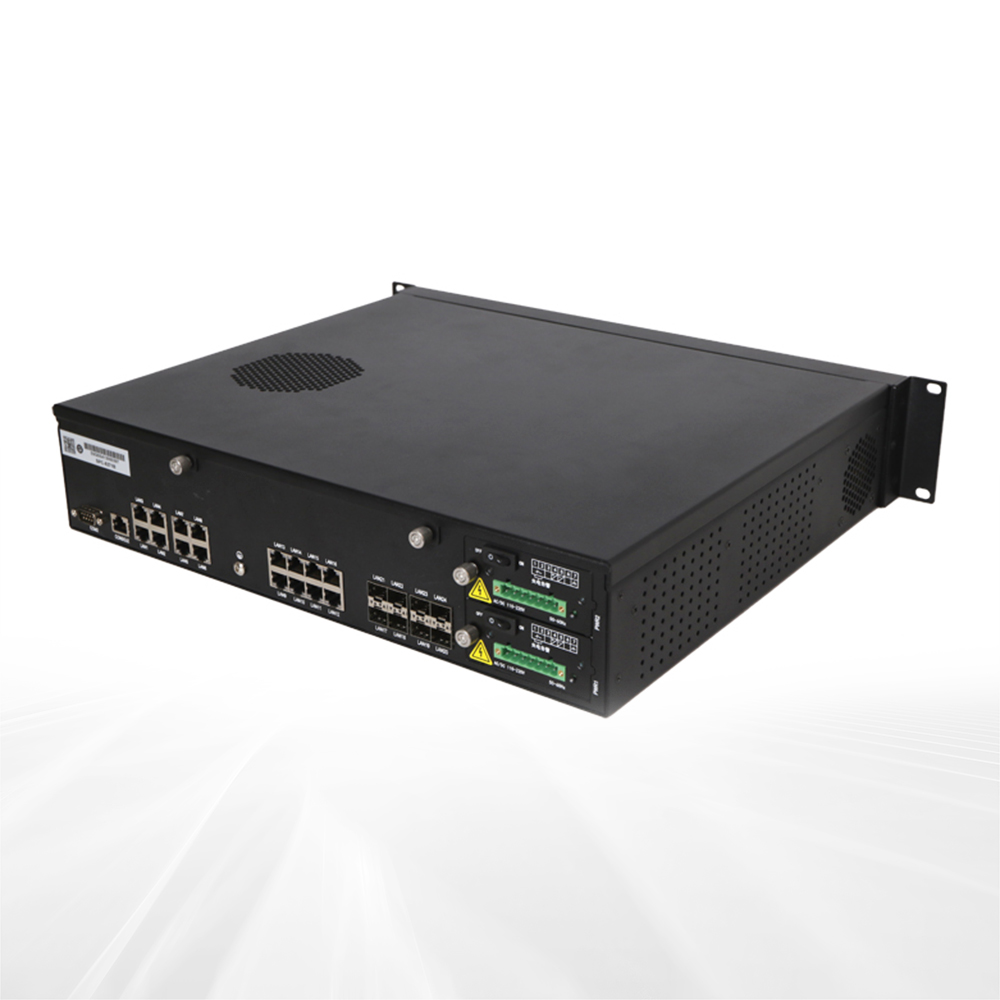

SPC-8271C 24-port Network Appliance Server
SPC-8271CServers & Network Platforms

SPC-8271C 24-port Network Appliance Server

2U multi-port network appliance with Hygon domestic CPU and up to 24 Ethernet ports, 150 W redundant PSU and power-industry EMC Level 4.

Processor

Hygon HG3250 / HG3330 / HG3350 (BGA1515) p

Memory

2 × DDR4 slots, 16 GB each, up to 32 GB

Power

AC 110–220 V / 50 Hz input; DC input; sing

Operating Temp

-5 to +45 °C

Dimensions

425 (W) × 88 (H) × 375 (D) mm, without ear

The SPC-8271C is a 2U rack-mount, multi-port industry server built on the domestic Hygon HG3250/HG3330/HG3350 processor platform. It supports up to 24 network interfaces (8 onboard copper ports plus ENS module expansion with copper or SFP options), a 150 W redundant power supply and EMC performance meeting national power-industry Level 4 — suited to power, transportation and other mission-critical network applications.

  • ✓150 W redundant PSU
  • ✓Configurable multi-port networking
  • ✓EMC meets national power-industry Level 4
  • ✓Rich expandable I/O
  • ✓Domestic (China) platform
Request a QuoteAsk a Question

Full Specifications

Overview

System Configuration
Hygon HG3250 / HG3330 / HG3350 (BGA1515) processors
Chipset
—
Memory
2 × DDR4 slots, 16 GB each, up to 32 GB

I/O & Expansion

I/O Ports
Up to 24 network ports (8 onboard copper; more via modules, copper/SFP optional)
Display
Built-in VGA
USB
Built-in USB debug port
Serial Ports
1 × RS485 (DB9), 1 × RS232 console (RJ45)
Status LEDs
Per configuration
Expansion Bus
2 × ENS network module slots
CFast
1 × CFast slot

Storage

Storage
1 × 2.5" + 1 × 3.5" drive bays

Power & Environment

Operating Environment
-5 to +45 °C
Storage Environment
-25 to +70 °C
Storage Humidity
40 °C, 95% RH (non-condensing)
Power Supply
AC 110–220 V / 50 Hz input; DC input; single or redundant PSU

Physical

Mounting
Rack-mount (2U)
Dimensions
425 (W) × 88 (H) × 375 (D) mm, without ears
Net Weight
≈ 11.8 kg (excl. packaging & accessories)
Color
Black

Software & Management

EMC
Meets national power-industry EMC Level 4
OS Support
Windows 7/10, Kylin OS, CentOS and recent-kernel Linux

Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
